Табло S3D 2вр. 1000х1000х300 с мп | Spark & Co
  • 3D
|

СКУ: NSYS3D101030DP

Табло S3D 2вр. 1000х1000х300 с мп

  • Brand
    Schneider Electric
  • EMC-version
    FALSE
  • RAL-number
    7035
  • Colour
    EV000270
  • With mounting plate
    TRUE
  • Degree of protection (IP)
    EV006420
  • Surface finishing
    EV008895
  • Material
    EV000179
  • With glazed door
    FALSE
  • With backside door
    FALSE
  • Material quality
    EV000154
  • Number of doors
    2
  • Width
    1000
  • Degree of protection (NEMA)
    EV007990
  • Height
    1000
  • Connectable
    FALSE
  • Suitable for outdoor set-up
    FALSE
  • Depth
    300
  • Detached
    FALSE
  • Suitable for metrical mounting
    TRUE
  • Pitched roof
    FALSE
  • Floor standing wall model
    TRUE
  • Intermediate mounting
    FALSE
  • Corner model
    FALSE
  • Suitable for wall built-in
    FALSE
  • Mounting plate depth-adjustable
    FALSE
  • With ventilation door
    FALSE
  • Suitable for wall mounting
    TRUE
  • Impact strength
    EV008784
  • Number of locks
    1
  • Pole fastening
    TRUE
  • Max. permissible load of the mounting plate according to IEC 62208
    250
  • Max. permissible load of the enclosure according to IEC 62208
    250
  • Max. permissible load of the door(s) according to IEC 62208
    50

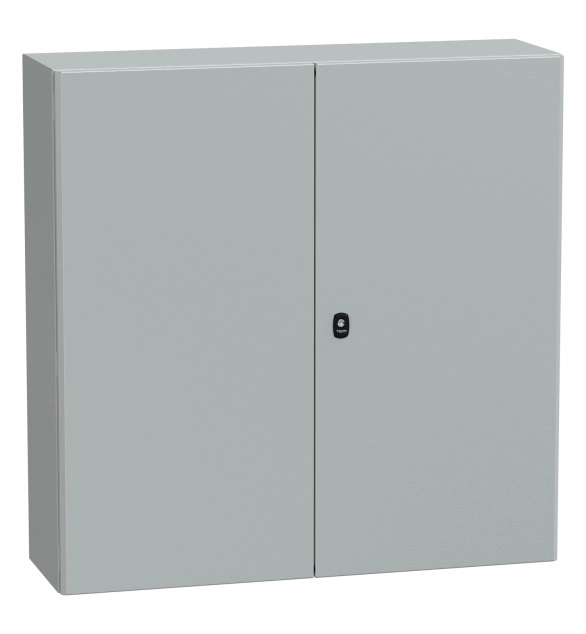

PanelSeT S3D is a multi-purpose wall-mounting enclosure designed for use in harsh environments It is made of steel and has a nominal height, width and depth of 1000mm, 1000mm and 300mm, respectively The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, two cable gland plates, two plain doors and a lock The doors can be opened up to 120°, allowing easy access to the equipment inside Furthermore, it is possible to change the opening side of the doors (reversible) The doors have a three-point lock with a 3mm double-bar insert The doors and the cable gland plates can be removed for maintenance purposes The net weight of the enclosure is 64kg The enclosure has a mounting plate made of galvanised steel and is certified by GL, BV, LR, UL, DNV and cUL It has an IK10 (IEC62262) rating and an IP55 (IEC60529) rating The variant particularity includes a single piece body and a gutter-shaped front rail double sheet thickness The accessibility for operation is at the front
