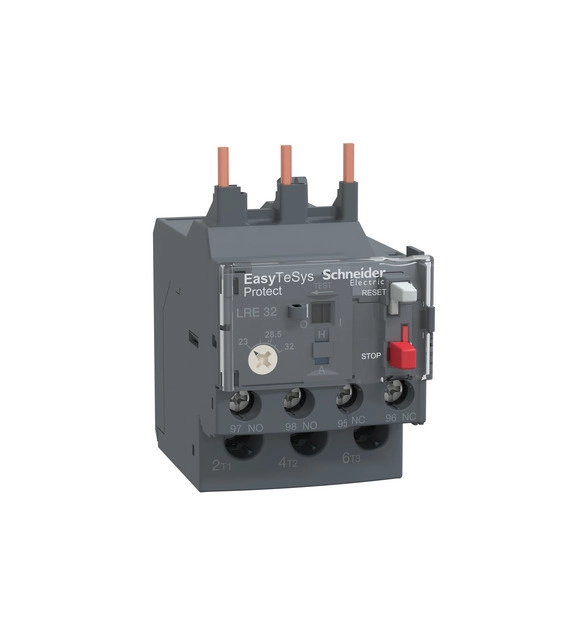

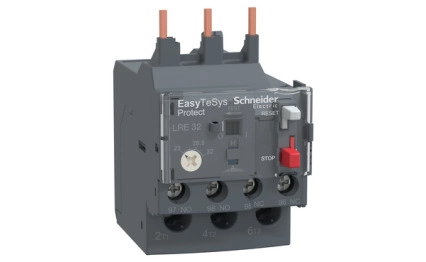

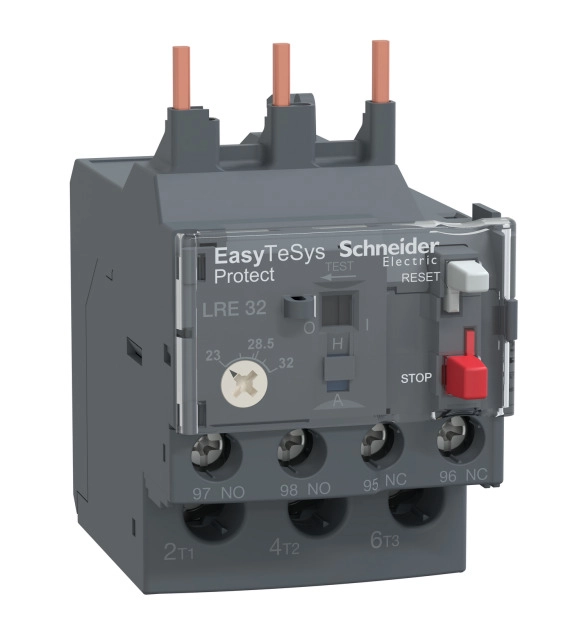

SCHNEIDER ELECTRIC Thermal overload relay, 690VAC, 5.5-8A, 1NO+1NC, class 10A

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Mounting method
    EV003970
  • Reset function automatic
    TRUE
  • Reset function input
    FALSE
  • Max. rated operation voltage Ue
    690
  • Release class
    EV011240
  • Number of auxiliary contacts as normally closed contact
    1
  • Number of auxiliary contacts as normally open contact
    1
  • Reset function push-button
    TRUE
  • Number of auxiliary contacts as change-over contact
  • Adjustable current range
    1.6

The LRE relay is a differential thermal overload relays for use with fuses or magnetic circuit-breakers GZ1LE. Its thermal setting range is 5.5-8A 50/60Hz and the tripping class is 10A conforming to IEC 60947-4-1. It can be direct mounted on Easy TeSys Control contactors with screw clamp terminals connection. It protects unbalanced loads and motors with 3kW at 400VAC. It provides manual or automatic reset, trip auxiliary contact and flag indicator. Available worldwide, it is multi-standards certified (CB scheme,CE,CCC,EAC) and Environmental compliant (RoHS/REACH).
