СКУ: NSYPLM43TVG
SCHNEIDER ELECTRIC Wall mounted polyester enclosure, 430x330x200mm, IP66
-
Brand
Schneider Electric
-
Material
EV000139
-
With mounting plate
FALSE
-
EMC-version
FALSE
-
RAL-number
7035
-
Colour
EV000270
-
Depth
200
-
Number of doors
1
-
With backside door
FALSE
-
With glazed door
TRUE
-
Degree of protection (NEMA)
EV014040
-
Width
330
-
Degree of protection (IP)
EV006422
-
Connectable
FALSE
-
Detached
FALSE
-
Pitched roof
FALSE
-
Intermediate mounting
FALSE
-
Corner model
FALSE
-
With ventilation door
FALSE
-
Suitable for wall mounting
TRUE
-
Suitable for outdoor set-up
TRUE
-
Impact strength
EV006814
-
Surface finishing
EV006034
-
Height
430
-
Material quality
EV000819
-
Suitable for wall built-in
TRUE
-
Mounting plate depth-adjustable
TRUE
-
Pole fastening
TRUE
-
Number of locks
2
-
Max. permissible load of the mounting plate according to IEC 62208
129
-
Max. permissible load of the enclosure according to IEC 62208
178

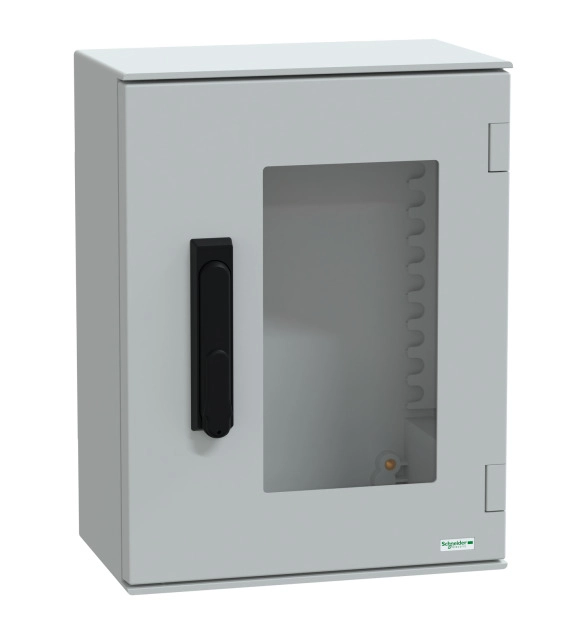

This PanelSeT PLM (formerly PanelSeT PLM) is a wall-mounted enclosure that is suitable for multi-purpose applications. The enclosure has a nominal height, width, and depth of 430 mm, 330 mm, and 200 mm, respectively. It is made of polyester reinforced with fiberglass, which offers durability and resistance to industrial, harsh and outdoor environments. The polyester material is made with 37% of recycled material content. Its packaging is made of 75% recycled carboard and without single-use plastic. The enclosure comes in a grey (RAL 7035) color. The enclosure consists of one body, one door, and one handle lock. The door is transparent and can be opened from the front with a 3 points handle. The enclosure offers high protection against dust and water with an IP66 rating (IEC 60529). It is also highly resistant to impacts, with an IK08 rating (IEC 62262), and offers protection against electric shocks with a class II electrical insulation rating. The enclosure can be used in ambient air temperatures ranging from -40 to 80°C without affecting its performance. The enclosure is also fire resistant up to 960 °C.
