СКУ: 81809

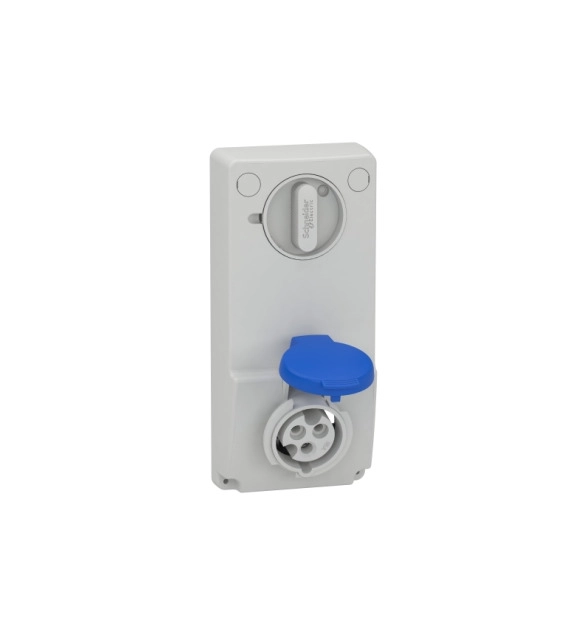

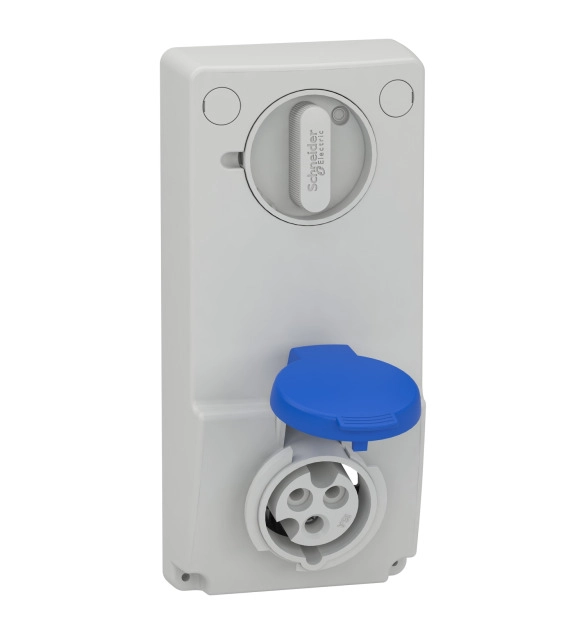

Инд. Присъединител Mureva PK, 16A, 3P+N+E, 400V, IP44
-
Brand
Schneider Electric
-
Number of poles
3
-
Material
EV000139
-
RAL-number
7035
-
Rated frequency
50
-
Connection system
EV001008
-
Identification colour
EV000233
-
Degree of protection (IP)
EV006423
-
Clock hour position
6
-
Military model
FALSE
-
Angle of plug
EV000409
-
Voltage according to EN 60309-2
EV009026
-
Rated voltage
380
-
IEC-amperage
63
-
Phase inverter
FALSE
-
Construction type
EV000990
This Mureva PK socket with completely loosened captive screws connection is straight panel mounted. It has 3P+N+E poles, rated current is 125A and the operating voltage is 500VAC. The dimensions of the base plate are (W) 129mm x (H) 114mm. The degree of protection is IP67 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The size of the cable entries in 125A is 26mm to 48mm for 16mm² to 70mm² cables. The color of the socket is light grey (RAL 7035) with black easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 7h.
