SCHNEIDER ELECTRIC Modbus communication module, HS code: 85389099, COO: FR, 0.08kg | Spark & Co
  • 3D
|

СКУ: LULC033

SCHNEIDER ELECTRIC Modbus communication module, HS code: 85389099, COO: FR, 0.08kg

  • Brand
    Schneider Electric
  • Degree of protection (IP)
    EV006405
  • Supporting protocol for SERCOS
    FALSE
  • SIL according to IEC 61508
    EV000494
  • System accessory
    TRUE
  • With potential separation
    TRUE
  • Performance level according to EN ISO 13849-1
    EV000494
  • Radio standard GPRS
    FALSE
  • Fieldbus connection over separate bus coupler possible
    FALSE
  • Supporting protocol for INTERBUS-Safety
    FALSE
  • Supporting protocol for AS-Interface Safety at Work
    FALSE
  • Radio standard GSM
    FALSE
  • Explosion safety category for dust
    EV000494
  • Radio standard UMTS
    FALSE
  • Explosion safety category for gas
    EV000494
  • Supporting protocol for DeviceNet Safety
    FALSE
  • Supporting protocol for Foundation Fieldbus
    FALSE
  • Radio standard LTE
    FALSE
  • Supporting protocol for SafetyBUS p
    FALSE
  • Voltage type of supply voltage
    EV000461
  • Supporting protocol for PROFINET CBA
    FALSE
  • Supporting protocol for PROFINET IO
    FALSE
  • Supporting protocol for PROFIsafe
    FALSE
  • Radio standard eGPRS
    FALSE
  • Supporting protocol for ASI
    FALSE
  • Radio standard Bluetooth
    FALSE
  • Supporting protocol for PROFIBUS
    FALSE
  • Appendant operation agent (Ex ia)
    FALSE
  • Radio standard Wi-Fi 802.11
    FALSE
  • Supporting protocol for TCP/IP
    FALSE
  • Supporting protocol for KNX
    FALSE
  • Supporting protocol for CAN
    FALSE
  • Appendant operation agent (Ex ib)
    FALSE
  • Supporting protocol for INTERBUS
    FALSE
  • IO link master
    FALSE
  • Supporting protocol for DeviceNet
    FALSE
  • Rail mounting possible
    FALSE
  • Suitable for safety functions
    FALSE
  • Supporting protocol for Data-Highway
    FALSE
  • Supply voltage DC
    24
  • Rack-assembly possible
    FALSE
  • Supporting protocol for LON
    FALSE
  • Supporting protocol for SUCONET
    FALSE
  • Wall mounting/direct mounting
    FALSE
  • Width
    45
  • Supporting protocol for other bus systems
    FALSE
  • Depth
    95
  • Supporting protocol for EtherNet/IP
    TRUE
  • Supporting protocol for Modbus
    TRUE
  • Height
    45
  • Front built-in possible
    TRUE

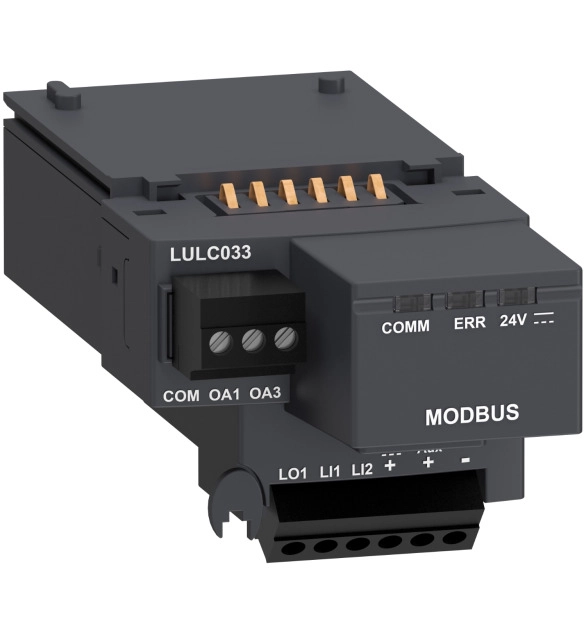

TeSys U communication module for Modbus, to be inserted in advanced power bases LUB120, LUB320, LUB380 equipped with a BL type (24V DC) LUC control unit. It provides a RJ45 connector for connection to a Modbus network. a plug-in terminal block for the connection to an external power supply 24V DC, in addition with 2 x configurable logic inputs 24V DC and 1 x logic output 24V DC. On front side, a 3-point plug-in terminal block is provided for the local control of the starter controller, to be associated with a control terminal block LU9BN11C for a LUB base or LU9MRC for a LU2B base. It displays 3 LEDs indicating 24V voltage presence (24V=) and communication status (COMM, ERR). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine).
