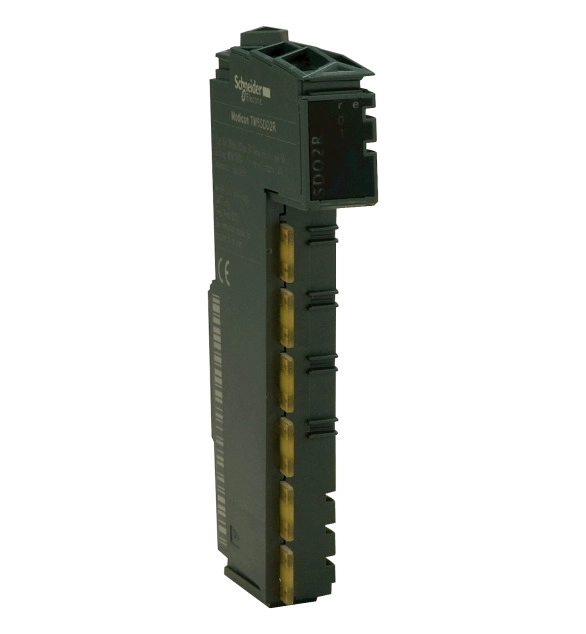

СКУ: TM5SDO4R
Модул. 4DO 30VDC/230VAC 5A релейни C/O
-
Brand
Schneider Electric
-
SIL according to IEC 61508
EV000494
-
Performance level according to EN ISO 13849-1
EV000494
-
Explosion safety category for dust
EV000494
-
Explosion safety category for gas
EV000494
-
Appendant operation agent (Ex ia)
FALSE
-
Appendant operation agent (Ex ib)
FALSE
-
Suitable for safety functions
FALSE
-
Digital inputs configurable
FALSE
-
Voltage type of supply voltage
EV000509
-
Short-circuit protection, outputs available
FALSE
-
Digital outputs configurable
FALSE
-
Supply voltage AC 50 Hz
230
-
Supply voltage AC 60 Hz
230
-
Type of electric connection
EV000414
-
Width
12.5
-
Height
99
-
Depth
75
-
Type of output voltage
EV000509
-
Type of digital output
EV000511
-
Time delay at signal exchange
10
-
Number of digital outputs
4
-
Permitted voltage at output
24
-
Supply voltage DC
30
-
Number of digital inputs
-
Output current
5
This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This discrete output module provides 4 discrete outputs with relay discrete output. Its output voltage limits are 184 to 276V AC, 24 to 36V DC, and provides a maximum power dissipation of 2.3W. This product is part of a flexible and scalable I/O configuration for automation solutions. There is an isolation between channel and bus at 500V AC. It is equipped with NO/NC contact. It is an IP20 rated product. Its housing colour is black.It weighs 0.025kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. This product is compatible with Modicon LMC058 and PacDrive LMC motion controllers and Modicon M258 logic controller. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.
