СКУ: EZ9C33116
Импулсно реле Easy9 TL 16A
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Width in number of modular spacings
2
-
Number of poles (total)
2
-
Rated current
32
-
Release characteristic
EV000084
-
Concurrently switching neutral conductor
TRUE
-
Flush-mounted installation
FALSE
-
Connectable conductor cross section multi-wired
1
-
Number of protected poles
1
-
Rated voltage
230
-
Anti-nuisance tripping version
FALSE
-
Rated fault current
0.03
-
Surge current capacity
0.25
-
Voltage type
EV000460
-
Connectable conductor cross section solid-core
1
-
Over voltage category
3
-
Frequency
EV008013
-
Ambient temperature during operating
-5
-
Pollution degree
2
-
Rated impulse withstand voltage Uimp
4
-
Leakage current type
EV000460
-
Current limiting class
3
-
Built-in depth
44.5
-
Rated insulation voltage Ui
400
-
Rated short-circuit breaking capacity Icn according to EN 61009-1
4.5
-
Disconnection characteristic
EV003978
-
Rated short-circuit breaking capacity according to EN 61009
6
-
With interlocking device
FALSE

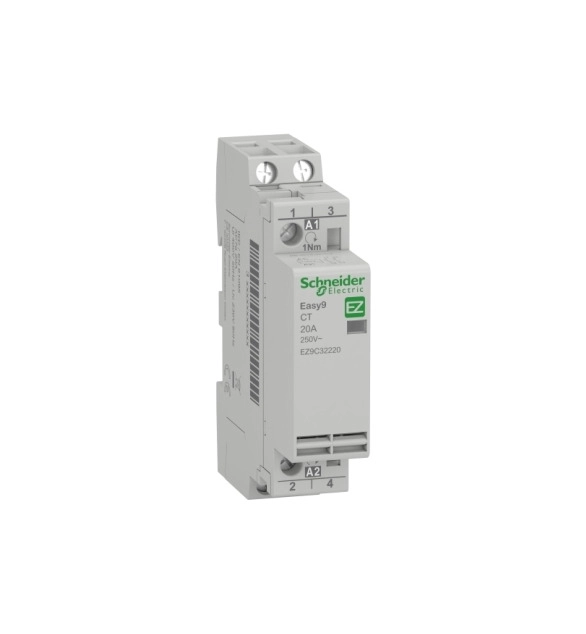

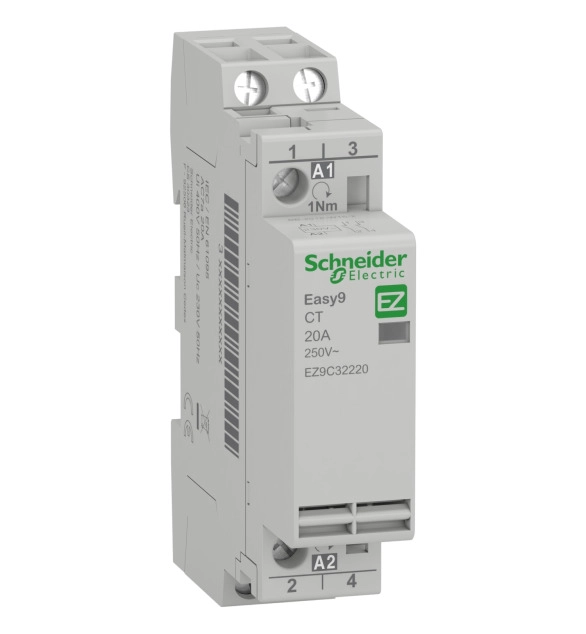

This Easy9 CT is a modular contactor. It is a 2P remote control device with 2 normally open contacts. The rated current is 20A, operating voltage is 230VAC and control voltage is 220VAC to 230VAC. This device could be used for control circuits. This product is compliant with IEC 61095 standard. Electrical endurance goes up to 200000 cycles. The maximum switching operations is 100 per day. The Ui rated insulation voltage is 400VAC. Pollution degree is 2 and overvoltage category is III. It is DIN rail mountable. Its width is 2 pitches of 9mm. The product color is light grey (RAL7035). The dimensions are (W) 81mm x (H) 18mm x (D) 60mm. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is from -5°C to 60°C. The storage temperature is from -40°C to 70°C.
