SCHNEIDER ELECTRIC KNX Power supply REG-K/320 mA with emergency power input, light grey | Spark & Co
  • 3D
  • 3D
|

СКУ: MTN683832

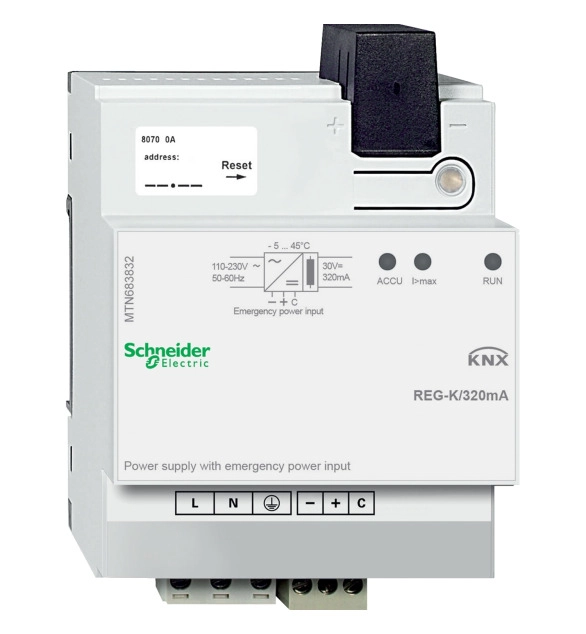

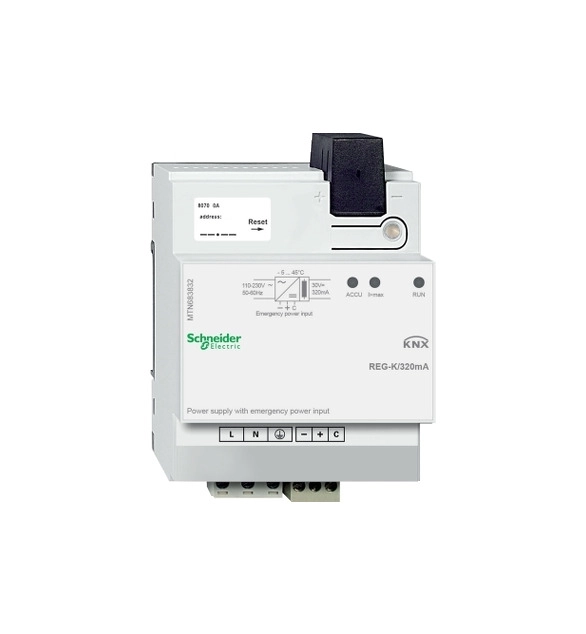

SCHNEIDER ELECTRIC KNX Power supply REG-K/320 mA with emergency power input, light grey

  • Brand
    Schneider Electric
  • Width in number of modular spacings
    4
  • With LED indication
    TRUE
  • Bus system KNX radio
    FALSE
  • Bus system Powernet
    FALSE
  • Bus system LON
    FALSE
  • Mounting method
    EV006471
  • Bus system radio frequent
    FALSE
  • Other bus systems
    EV000494
  • Bus system KNX
    TRUE
  • Max. output current
    640
  • Bus voltage stockable
    FALSE
  • Number of lines to feed
  • Number of integrated choke coils
  • Secondary voltage
    230

KNX power supply REG-K/320 mA. For generating the bus voltage for a line with up to 64 bus devices. With integrated choke to decouple the power supply from the bus and a push-button to disconnect the power and reset the bus devices connected to the line. For installation on DIN rails TH35 according to EN 60715. The bus is connected using a bus connecting terminal. a data rail is not necessary. Nominal voltage: AC 110-230 V ±10%. Operating voltage: min. AC 92 V - max. AC 253 V. Mains frequency: 50-60 Hz ±10%. Output voltage: DC 30 V. Output current: max. 320 mA, short-circuit-proof. Device width: 4 modules, approx. 72 mm. Contents: With bus connecting terminal and cable cover. Colour: light grey.
