СКУ: LC1D12BD

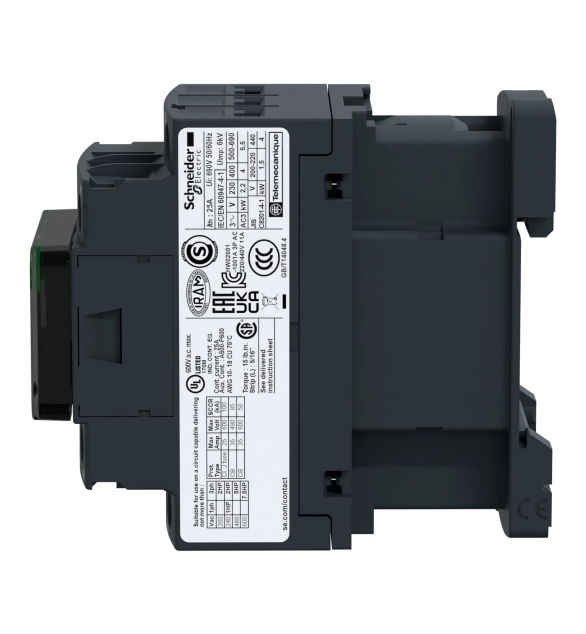

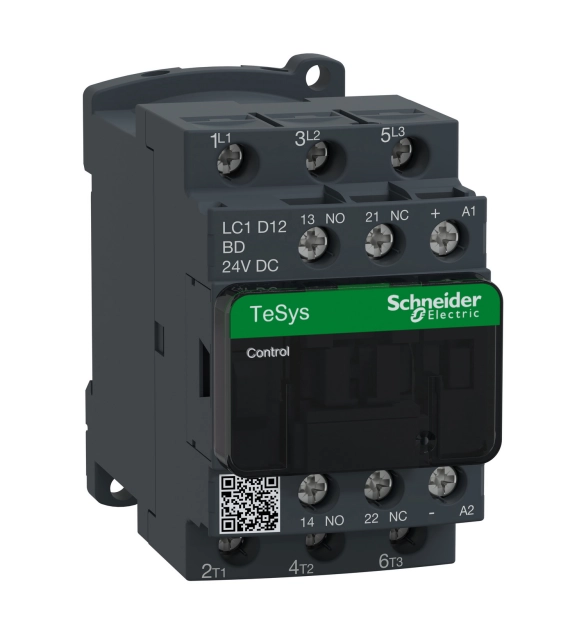

SCHNEIDER ELECTRIC Contactor 3P(3NO), AC-3/AC-3e, <=440V 12A, 24V DC coil

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Rated operation power at AC-3, 400 V
    5.5
  • Voltage type for actuating
    EV000461
  • Rated control supply voltage Us at DC
    24
  • Number of auxiliary contacts as normally closed contact
    1
  • Number of auxiliary contacts as normally open contact
    1
  • Modular version
    FALSE
  • Number of normally open contacts as main contact
    3
  • Rated operation current Ie at AC-1, 400 V
    25
  • Rated operation current Ie at AC-3, 400 V
    12
  • Number of normally closed contacts as main contact

TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 12A/690V AC-3/3e (5.5kW/400V). It provides a 24V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
