СКУ: NSYCR50WU1C

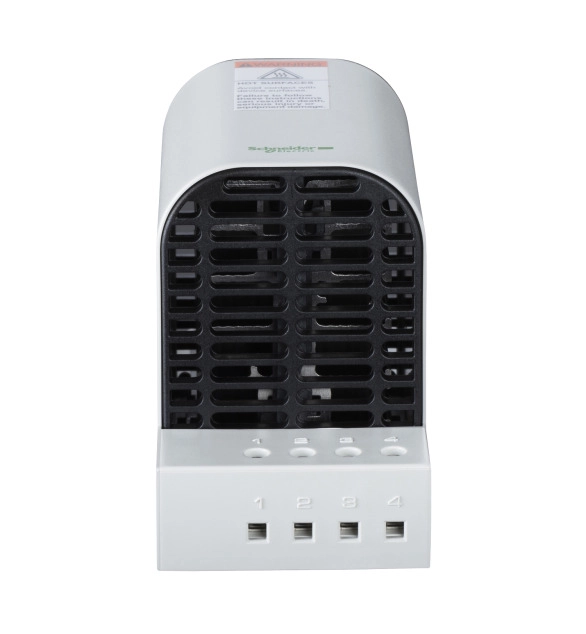

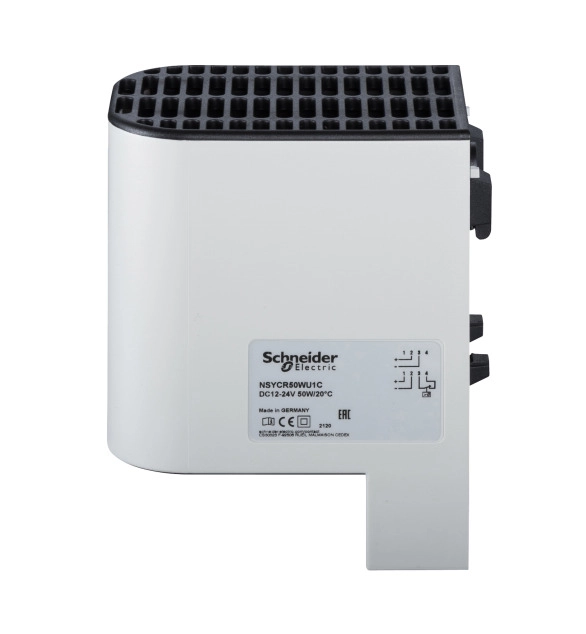

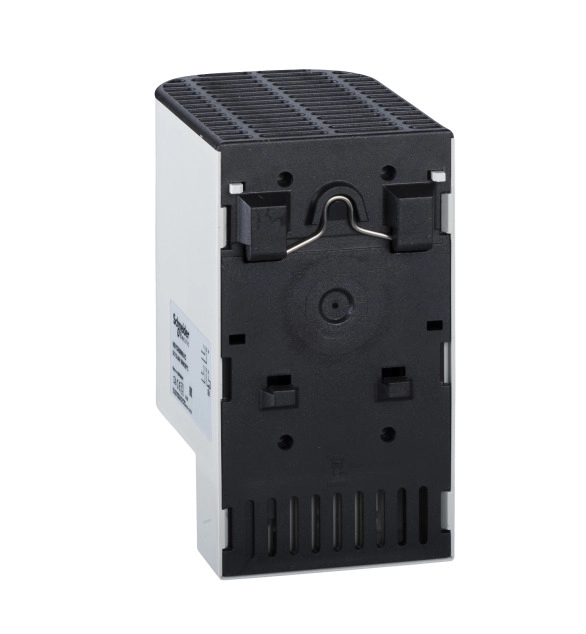

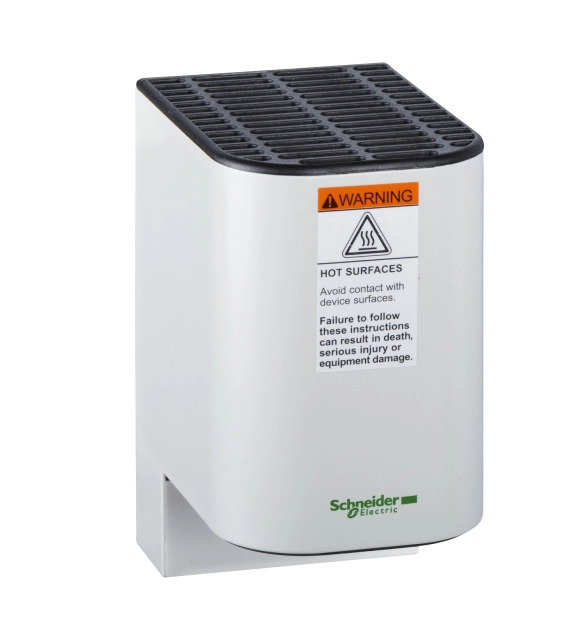

Резистивен изолиран нагревател 50W 12-24V
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Width
60
-
Degree of protection (NEMA)
EV000599
-
Depth
90
-
Voltage type
EV000461
-
Height
110
-
With room temperature controller
FALSE
-
With fan
FALSE
-
Operating voltage at DC
12
-
Continuous heating power at 10 °C
55
-
Rated power
55
Resistance heater 50W, 12,24 V DC for ClimaSys CR Thermal Management System The product has extruded aluminium body and plastic cover Fixing by clips in vertical operating position The product width is 38mm, height is 98mm and depth is 75mm The heaters must be installed with a thermal controller to control the temperature or the humidity inside the enclosure The enclosure must be sealed to prevent the entry of air from the outside An electrical protection device must be installed on the supply side of the unit Conforms with UL and VDE certification Ingress protection rating IP20 Ambient air temperature for operation -40-70 °C Conforms with UL and VDE certification Conforms class II electrical insulation class
