SCHNEIDER ELECTRIC iPRD40r Modular surge arrester - 3P, 350V, with remote transfert | Spark & Co
  • 3D
|

СКУ: A9L40301

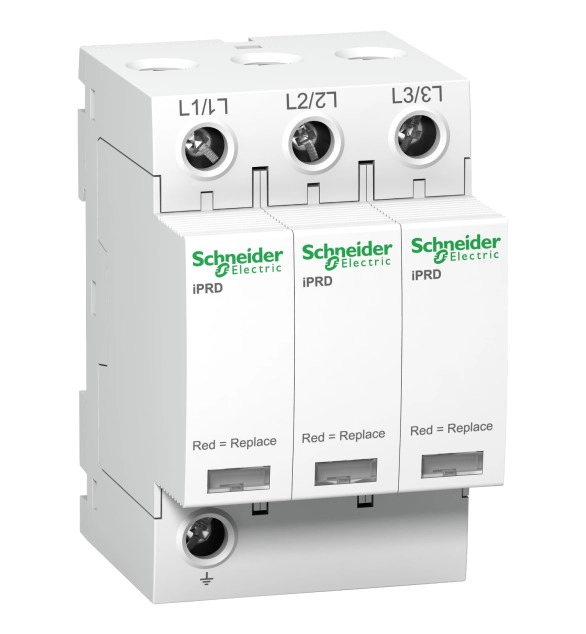

SCHNEIDER ELECTRIC iPRD40r Modular surge arrester - 3P, 350V, with remote transfert

  • Brand
    Schneider Electric
  • Degree of protection (IP)
    EV006405
  • Integrated short-circuit protection
    FALSE
  • System configuration TN-C
    TRUE
  • Leakage-current free
    FALSE
  • System configuration DC
    FALSE
  • System configuration TN
    FALSE
  • System configuration IT
    FALSE
  • Number of conductors (without earthing)
    3
  • System configuration TT
    FALSE
  • System configuration TN-S
    FALSE
  • Signalling at the device
    EV000428
  • Max. conductor cross section solid (solid, stranded)
    35
  • Max. conductor cross section flexible (fine-strand)
    35
  • System configuration TN-C-S
    FALSE
  • Mounting method
    EV005503
  • System configuration other
    FALSE
  • With remote signalling contact
    TRUE
  • Integrated backup fuse
    FALSE
  • Category type 2
    TRUE
  • Max. continuous voltage AC
    350
  • Max. discharge surge current (8/20)
    40
  • Max. overcurrent protection device, series connection (fuse)
    80
  • Short-circuit breaking capacity (Isccr)
    50
  • Voltage protection level
    1.4
  • Nominal discharge surge current (8/20)
    15
  • Nominal voltage AC
    350
  • Max. overcurrent protection device, parallel connection (fuse)
    63
  • Construction size
    EV007000

This Acti9 iPRD40r surge arrester protects 3P installations. It allows quick replacement of damaged cartridges. This Type 2 device is recommended for high risk level in incoming panel board. It offers remote reporting of the "cartridge must be changed" message. It can be turned over to allow the phase/neutral/earth cables to enter through either the top or the bottom. The associated circuit breaker Isc breaking capacity can go up to 50kA. It is compatible with TT and TN-S earthing system. The Uc maximum continuous operating voltage in common mode (between phase and earth) is 350VAC. The Up maximum voltage protection level in common mode (between phase and earth) is 1.6kV. The Ue rated operational voltage is 230VAC +/- 10%. The product colour is white (RAL9003).The dimensions are (W) 54mm x (H) 85mm x (D) 69mm. The weight is 323g. The degree of protection is IP20 and IP40 in modular enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 85°C. This product is compliant with EN 61643-11 and IEC 61643-11 standards.
