СКУ: BLRCH250A300B40

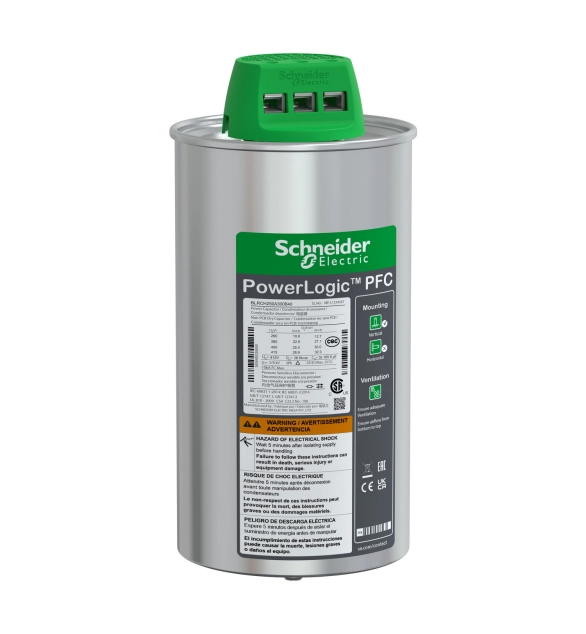

SCHNEIDER ELECTRIC Heavy duty PowerLogic PFC Capacitor, 25/30kvar, 400V, 50/60Hz
-
Brand
Schneider Electric
-
Model
EV000154
-
Length
242
-
Nominal voltage
380
-
With insert contacts
FALSE
-
Diameter
116
-
Capacity
165.9
-
Capacity 2
VarPlus Can capacitor are a reliable and flexible solution for power factor correction in stringent operating conditions. These capacitors are particularly used for higher voltage disturbances or when a few non-linear loads are present. The rated current of the capacitors must be in increased in order to cope with the circulation of the harmonic current. This capacitor provides a rated output power of 25 kVar at 400V AC, 50 Hz. Fastening assured by a ClampTite terminal. This component meet the standards IEC 60831-1 and IEC 60831-2. The case product weight is 2.5 kg.
