СКУ: LVS04111

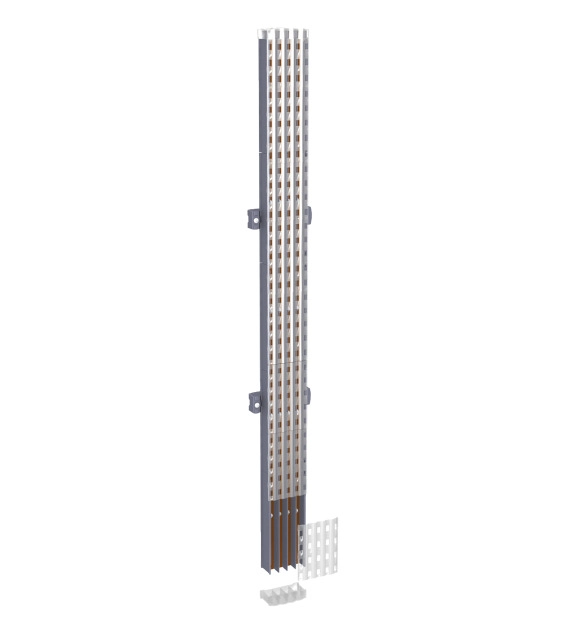

Busbar, Linergy BW, 3P, 160A, insulated busbar, vertical, L1000mm

Brand
Schneider Electric
Surface protection
EV006034
Flexible
FALSE
Length
1000
Model
EV000880
Rated current In
160

Busbar designed for use in electrical distribution systems and is compatible with PrismaSeT P and PrismaSeT G enclosures. 3-pole insulated busbar from Linergy BW. Busbar has a rated operational current of 160A and a rated short-time withstand current of 10 kA. Busbar is also rated for a peak withstand current of 30 kA. The busbar is 1000mm long. It is connected using M6 threaded holes with a connection pitch of 25mm.
