СКУ: TA16D3L0804TPE

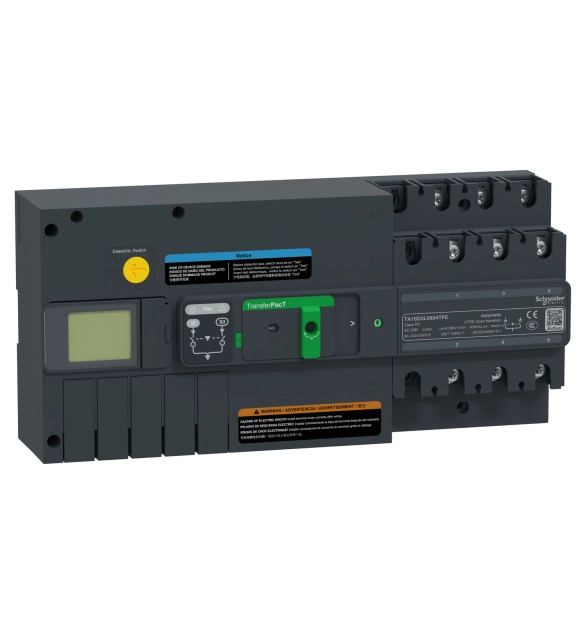

Превключватели за прехвърляне, TransferPacT Active автоматичен, 80A, 3P, LCD, рамка 160A
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Number of poles
3
-
Degree of protection (IP), front side
EV006405
-
Suitable for floor mounting
FALSE
-
Rated permanent current Iu
80
-
Model
EV000154
-
Suitable for distribution board installation
TRUE
-
Material housing
EV000139
-
With zero (off) position
TRUE
-
With retraction in 0-position
FALSE
-
Complete device in housing
TRUE
-
Suitable for front mounting
FALSE
-
Type of control element
EV000154
-
Number of auxiliary contacts as change-over contact
3
This TA16D3L0804TPE is a low voltage power transfer switch used in industrial and commercial buildings, data centers, healthcare facilities and transportation industry. The rated operational voltage(Ue) is 400VAC@50/60Hz. This change source is AC-33B utilization category. The rated current(Ie) can be loaded 80A(Ie) at 60℃, with 80-160A frame. The front has a inbuit LCD display module which is used for displaying status and alarm setting, and control by push button. This transfer switch provided 3 contact postion to the front by mechanical and electrical indication. It can be fixed on the Din rail or plate and position it inside of power distribution cabinet. It also has some optional accessories in terms of different application scene. This 3poles version is 351mm(width)x164mm(height)x95mm(depth). It is compliance with standard IEC 60947-6-1, and certified by CE/CB/CCC. It is suitable for power transfer of life safety loads like Fire-fighting equipment, Smoke Extract Fans, Sprinkler pumps,emergency lights etc.
