СКУ: NSYCRN66250P

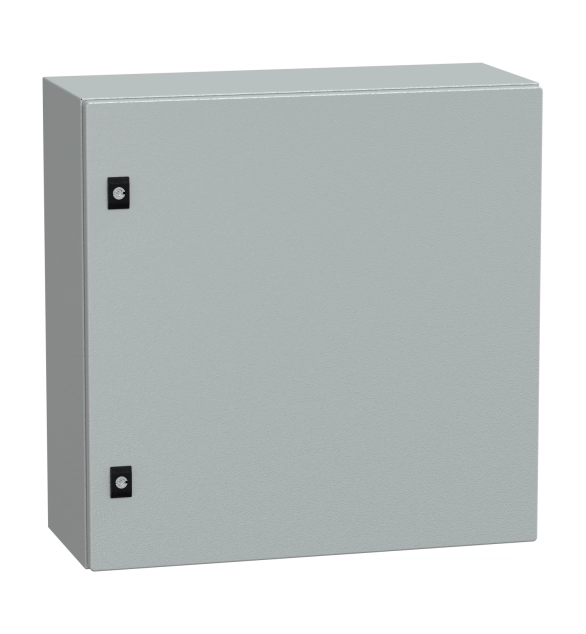

SCHNEIDER ELECTRIC Enclosure PanelSeT CRN Plain door with mount.plate. H600xW600xD250 IP66 IK10

  • Brand
    Schneider Electric
  • EMC-version
    FALSE
  • RAL-number
    7035
  • Colour
    EV000270
  • With mounting plate
    TRUE
  • Surface finishing
    EV008895
  • Material
    EV000179
  • Width
    600
  • Degree of protection (NEMA)
    EV000154
  • With glazed door
    FALSE
  • Number of doors
    1
  • With backside door
    FALSE
  • Material quality
    EV000154
  • Degree of protection (IP)
    EV006422
  • Height
    600
  • Connectable
    FALSE
  • Suitable for outdoor set-up
    FALSE
  • Detached
    FALSE
  • Pitched roof
    FALSE
  • Intermediate mounting
    FALSE
  • Corner model
    FALSE
  • Suitable for wall built-in
    FALSE
  • Mounting plate depth-adjustable
    FALSE
  • With ventilation door
    FALSE
  • Floor standing wall model
    FALSE
  • Suitable for wall mounting
    TRUE
  • Impact strength
    EV008784
  • Depth
    250
  • Suitable for metrical mounting
    FALSE
  • Number of locks
    1
  • Pole fastening
    TRUE
  • Max. permissible load of the mounting plate according to IEC 62208
    900
  • Max. permissible load of the enclosure according to IEC 62208
    1580
  • Max. permissible load of the door(s) according to IEC 62208
    180

PanelSeT CRN is a multi-purpose steel wall-mounting enclosure with a nominal height, width, and depth of 600mm, 600mm, and 250mm, respectively It is designed for use in harsh environments, withstanding high impact due to its IK10 (IEC62262) rating and high resistance to dust and water with an IP66 rating (IEC60529) The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish It comes with a cable gland plate, a plain door with a three-point lock and a 3mm double-bar insert as well as a galvanised steel mounting plate The door can be opened up to 120°, allowing easy access to the equipment inside It is possible to change the opening side of the door (reversible) The door, the cable gland plate, and the mounting plate can be removed for maintenance purposes The net weight of the enclosure is 19,54kg It is certified by UL, cUL, and DNV-GL The back is welded with double profile forming a protected sealed area and the sides are made from a single folded section The accessibility for operation is from the front This compact enclosure is c.UL certified.
