СКУ: A9A26914
SCHNEIDER ELECTRIC Auxiliary contact, Acti9 A9A, iOF, 1 C/O, 2mA to 100mA, 24-250VAC, 24V-220VDC /CF-25-01734/
-
Brand
Schneider Electric
-
Width in number of modular spacings
1
-
With auto test for earth leakage function
FALSE
-
Suitable for max. number of poles main contact unit (total)
4
-
Voltage type for actuating
EV000509
-
Device fitting
EV000646
-
Installed at the factory
FALSE
-
Number of contacts as normally closed contact
-
Number of contacts as normally open contact
-
Number of contacts as change-over contact
-
Number of fault-signal switches
-
Rated voltage
24
-
Suitable for max. current main contact unit
63
-
Additional equipment
EV009614

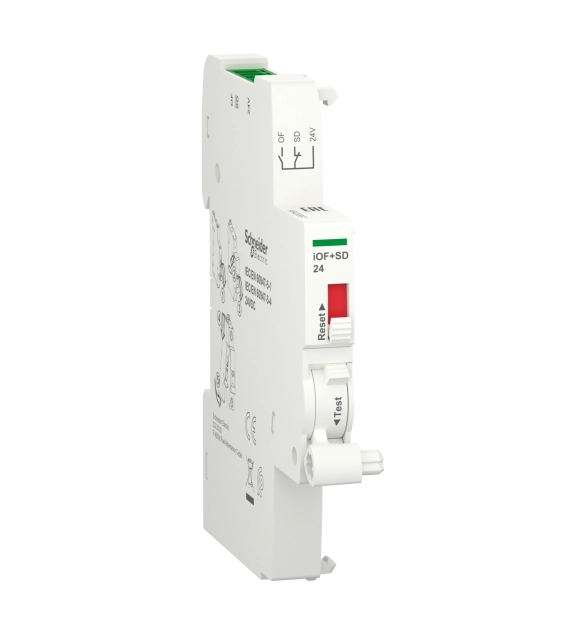

This Acti9 iOF+SD24 electrical auxiliary is a double open/close and fault indicating contact. It is compatible with Acti9 ranges. The 2 contacts 1 NO + 1NC can report the signalling information of the associated device to the Acti9 Smartlink. It reports also the electrical fault, actuation of the tripping auxiliary, Open or Closed position of the associated device informations to a programmable logic controller. The width in 9mm pitches is 1. It is compatible with downstream com busbar. Remote indication of position and tripping upon a fault of the associated device. The In rated operational current is from 2mA to 100mA. The Ue rated operational voltage is 240VDC. The operating temperature is -25°C to + 70°C. The storage temperature is -40°C to + 85°C. This product complies with IEC/EN 60947-5-1 standards.
