СКУ: 33440

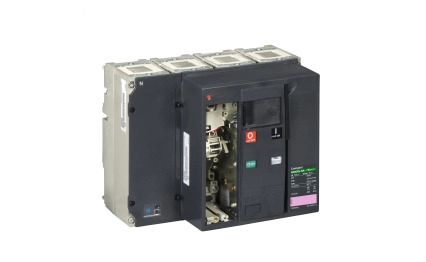

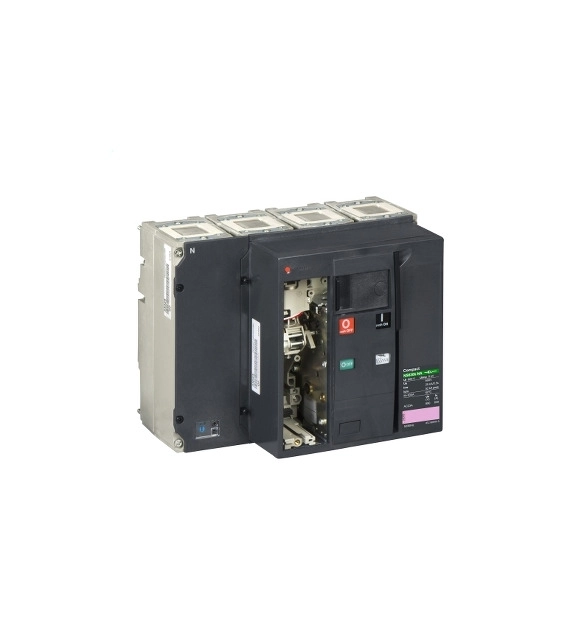

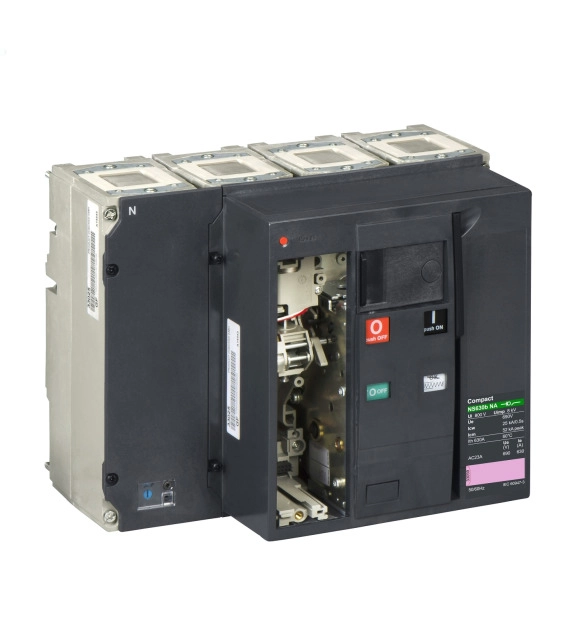

Товаров разединител, ComPact NS630bNA, фиксиран, електрическо управление, 630A, 690VAC 50/60Hz, 3P

  • Brand
    Schneider Electric
  • Number of poles
    3
  • Device construction
    EV009211
  • Motor drive optional
    FALSE
  • Degree of protection (IP)
    EV006415
  • Type of electrical connection of main circuit
    EV008864
  • Complete device with protection unit
    FALSE
  • DIN rail (top hat rail) mounting optional
    FALSE
  • Rated voltage
    690
  • Position of connection for main current circuit
    EV007926
  • Integrated earth fault protection
    FALSE
  • Suitable for DIN rail (top hat rail) mounting
    FALSE
  • Type of control element
    EV000554
  • With switched-off indicator
    TRUE
  • Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
    70
  • With integrated under voltage release
    FALSE
  • Motor drive integrated
    TRUE
  • Rated permanent current Iu
    1250
  • Number of auxiliary contacts as normally closed contact
  • Number of auxiliary contacts as change-over contact
  • Number of auxiliary contacts as normally open contact

This product is a 3 poles ComPacT NS1000H circuit breaker frame. This device is withdrawable and is electrically operated. This breaker frame is not equipped with a control unit, which has to be ordered separately through the ComPacT NS product selector. This breaker frame has to be installed inside a chassis, which has to be ordered separately through the ComPacT NS product selector. ComPacT NS is designed to optimize space and breaking capacity, it is an optimal choice for all standard and specific applications. The operational current is 1000A. The operational voltage is 690VAC 50/60Hz. The breaking capacity (Icu) is 70kA rms at 415VAC 50/60Hz. The circuit breaker is electrically operated, it is equipped with a motor mechanism module used for remote opening and closing operation. This product comes with a variety of optional functions and accessories. The dimensions are 270mm (Heigh) x 239mm (Width) x 182mm (Depth). It is compliant with IEC 60947-1 and IEC60947-2 international standards. ComPacT NS can be integrated within Schneider Electric EcoStruxure Power architecture. ComPacT NS is part of the global Schneider Electric Environmental Program.
