СКУ: 8800310030

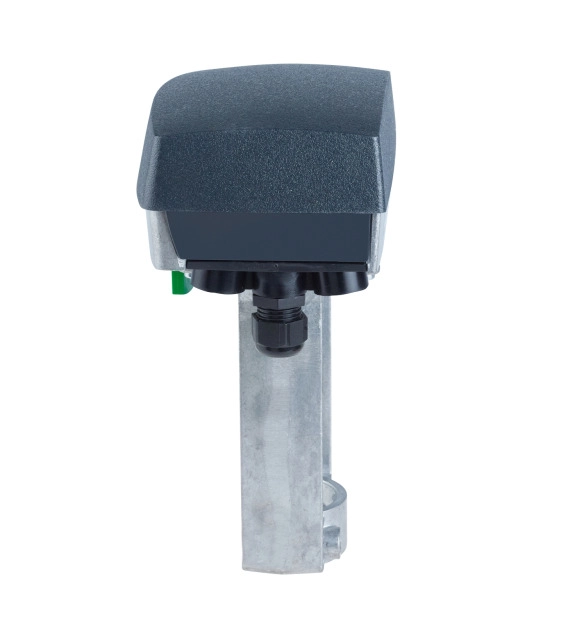

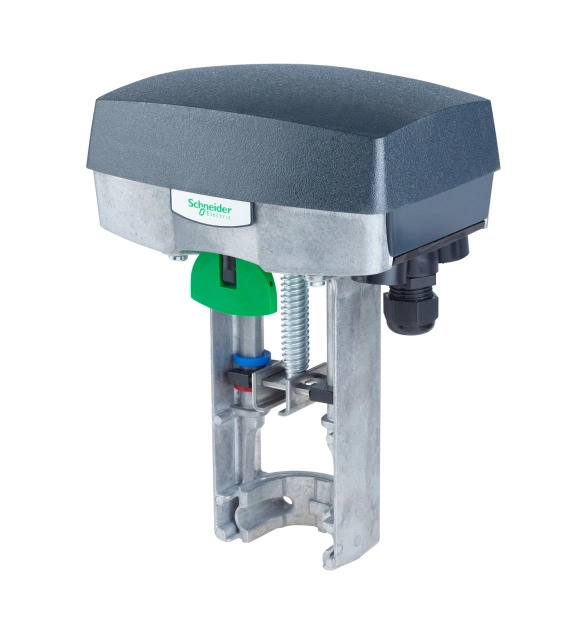

SCHNEIDER ELECTRIC Actuator for globe valves, HS code: 85011099, COO: SE, 1.8kg

  • Brand
    Schneider Electric
  • Explosion-proof
    FALSE
  • Degree of protection (IP)
    EV006419
  • Potential free switch contact
    FALSE
  • Height
    132
  • Connection to stop valve
    EV000154
  • Adjustable position feedback signal
    TRUE
  • Control signal
    EV000154
  • Deactivated when closed
    TRUE
  • Supply voltage
    EV021410
  • Regulation type splitrange
    FALSE
  • Regulation type modulating
    TRUE
  • Model
    EV020004
  • Return at zero supply voltage
    FALSE
  • Regulation type on/off
    FALSE
  • Suitable for air accessory
    FALSE
  • Position reporting system
    EV000494
  • Suitable for valve
    TRUE
  • Ambient temperature
    -10
  • Auxiliary contacts optional
    FALSE
  • Material housing
    EV000072
  • Adjustable operating range
    TRUE
  • Automatic travel recognition
    FALSE
  • Type of safety function
    EV000154
  • Degree of protection (NEMA)
    EV000069
  • Suitable for manual operation
    FALSE
  • End contacts
    EV000494
  • With top flange direct mount according to ISO 5211
    FALSE
  • Self-adjusting travel length
    TRUE
  • With mechanical setting indicator
    TRUE
  • Auxiliary contacts
    TRUE
  • Depth
    255
  • With safety function
    FALSE
  • Torque
    10
  • Operating time
    30
  • Allowable relative humidity
  • Width
    177
  • Adjusting force
    800
  • Stroke length
    51

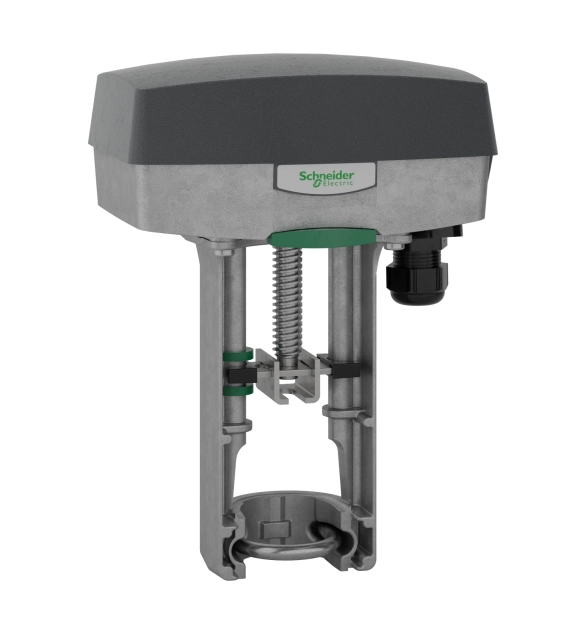

The SpaceLogic M800 is an actuator for the control of 2-way and 3-way globe valves. It has a very fine resolution PCBA board which provides good rangeability of the valve. The manual override allows the actuator to be overriden and valve position adjusted without disconnecting the power supply. It may be configured for different flow characteristics, inverse signal or sequence control. Supply voltage: 24 Vac +25%/-35%. Analog Control Input selectable Voltages: 0…10 V, 2…10 V, 0…5 V, 5…10 V, 2…6 V, 6…10 V. Force: 800 N, IP 54 Protection class. EMC 2014/30/EU, LVD 2014/35/EU. When an end position adjustment is made, The actuator closes the valve and then opens it fully before responding to the control signal. Conduit connection 3 x M20 screwed. Conduit connection 3 x M20 screwed.
