СКУ: LC2D95M7

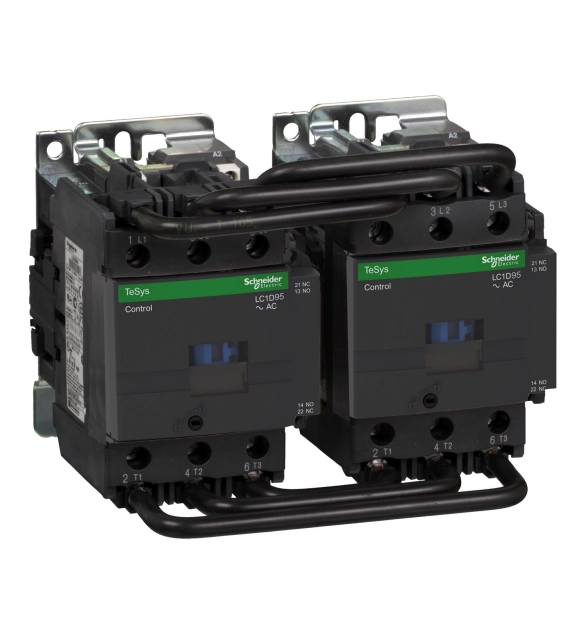

Реверсивен контактор 95A 220V 50/60HZ
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Degree of protection (IP)
EV006405
-
Voltage type for actuating
EV000460
-
Rated control supply voltage Us at AC 50HZ
220
-
Rated control supply voltage Us at AC 60HZ
220
-
Rail mounting possible
FALSE
-
Type of electrical connection for auxiliary- and control current circuit
EV000415
-
Degree of protection (NEMA)
EV000154
-
Rated operation power at AC-3, 400 V
45
-
Function
EV003958
-
Number of normally open contacts as main contact
3
-
Rated operation power NEMA
44.8
-
Rated operation current Ie at AC-3, 400 V
95
-
Number of normally closed contacts as main contact
TeSys Deca reversing contactor, 3P(3NO) for category AC-3/AC-3e applications up to 95A/440V AC-3/AC-3e (45kW@400V). It is provided with 220V 50/60Hz standard coil, with 2NO+2NC auxiliary contact, power and control connections by screw clamp terminals. It procures with 4 Mcycles mechanical durability and 1.2 Mcycles electrical durability. It provides IP20 protection on front face conforming to IEC 60529. It can cover -40°C to 60°C operation temperature and without derating under 3000m altitude. Designed for demanding applications with maximum operating rates up to 3600 cycles per hour under maximum 60°C. The dimension is 127mm x 182mm x 158mm (H x W x D), mounting on rail or plate. This device is preassembled with reversing power busbar. Multi standards certified(UL,LROS,CSA,CCC,UKCA,DNV,RINA,BV,GOST,GL).
