СКУ: C6PWM

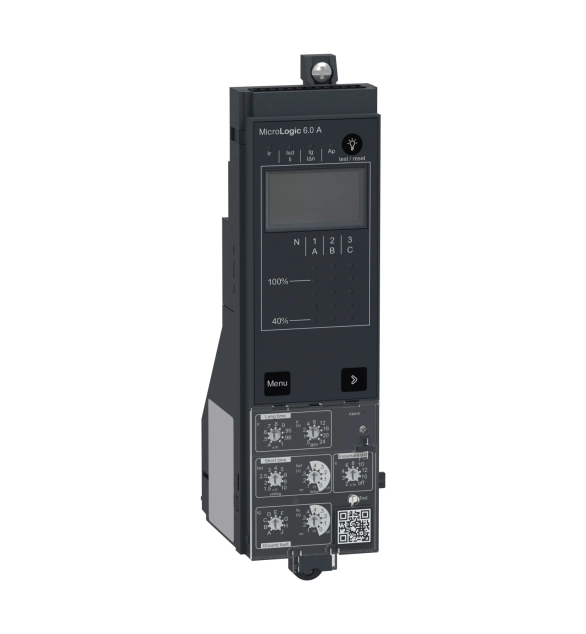

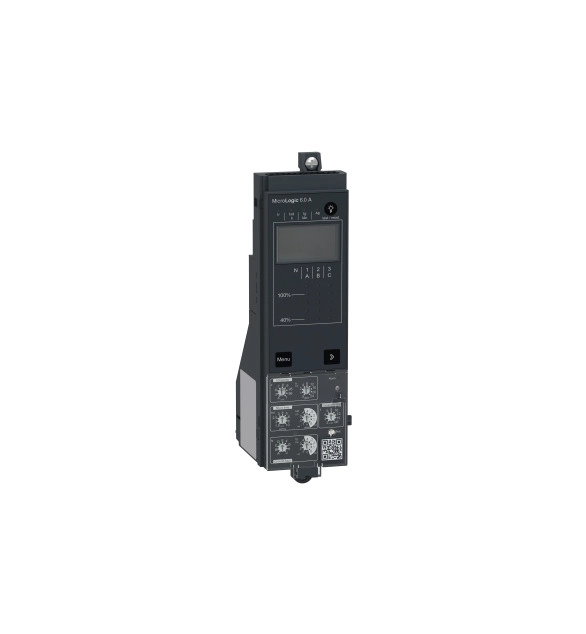

Контролен блок MicroLogic 6.0P, ComPacT NS630b до NS1600 изваждаем ръчно управление, селективни защити и защита от земно късо сединение

  • Brand
    Schneider Electric
  • Rated permanent current Iu
    1600
  • Rated control supply voltage Us at DC
    24
  • Type of motor protection
    EV014005
  • Voltage type for actuating
    EV009206
  • Overload release current setting
    252
  • Short-circuit release function
    EV003977
  • With ground fault protection function
    FALSE
  • Initial value of the undelayed short-circuit release - setting range
    3200
  • End value adjustment range undelayed short-circuit release
    24000

TeSys DF modular fuse carrier, 3 poles (3P), for protection of control circuits up to 25A/500V. To be used with 8.5x31.5mm fuse links up to 25A and short circuit current up to 20kA@400V. It provides blown fuse indication by LED. Compact (52.5mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw terminals, padlockable without accessory. Fuse links (8.5x31.5mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 4 units. Multi standards certified (IEC, EAC, Marine).
