СКУ: SSM1A16F7
Реле за монтаж на DIN шина - 90-140 V AC, 24-280 V AC ,6A
-
Brand
Schneider Electric
-
Voltage type for actuating
EV000460
-
Number of phases
1
-
Modular version
TRUE
-
Operating voltage
24
-
Switching at zero-crossing
FALSE
-
Rated operation current Ie at AC-53a
6
-
Rated operation current Ie at AC-51
6
-
Rated operation current Ie at AC-53b
6
-
Rated operation current Ie at AC-1
6
-
Rated operation current Ie at AC-3
6
-
Rated control supply voltage Us at AC 50HZ
90
-
Rated control supply voltage Us at AC 60HZ
90

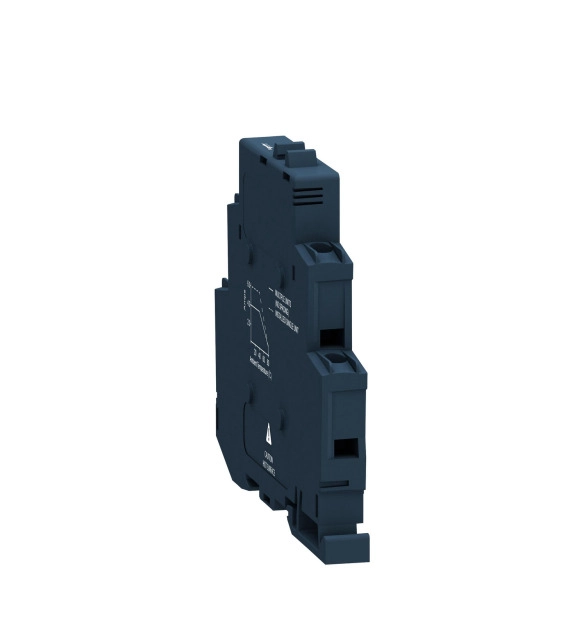

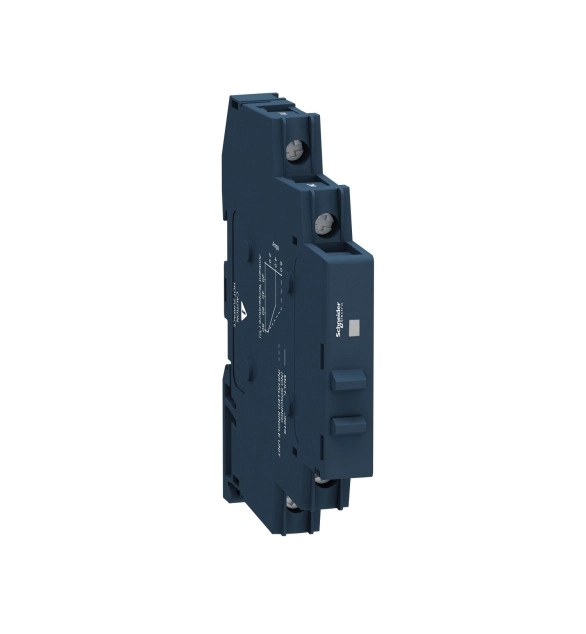

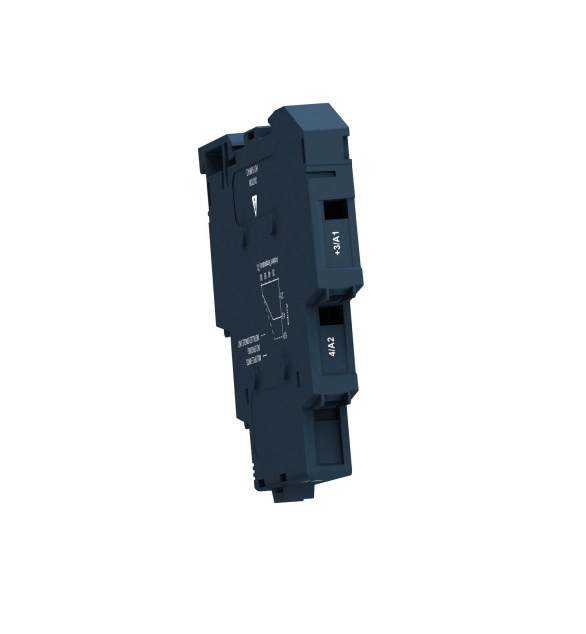

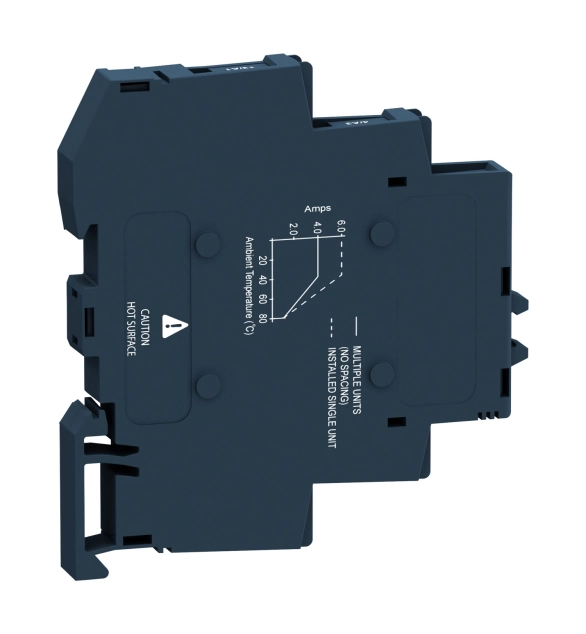

This Harmony SSM solid state modular DIN rail single-phase relay is rated 6A, is controlled with a 90V to 140V AC input, has a rated load voltage of 24V to 280V AC with zero voltage switching, ideal for resistive loads. It also has a visual indicator showing the status of its input. Built-in heatsink for maximum performance and less spare parts to manage. It is also silent and reliable thanks to the absence of moving contacts. Its clear schematic on the side of the socket enables easier wiring and maintenance.
