прекъсвач EasyPact CVS250B, 25kA, 415VAC, 200A номинален, термомагнитно TM-D изключващо у-во, 4P 3d | Spark & Co
  • 3D
|

СКУ: LV525322

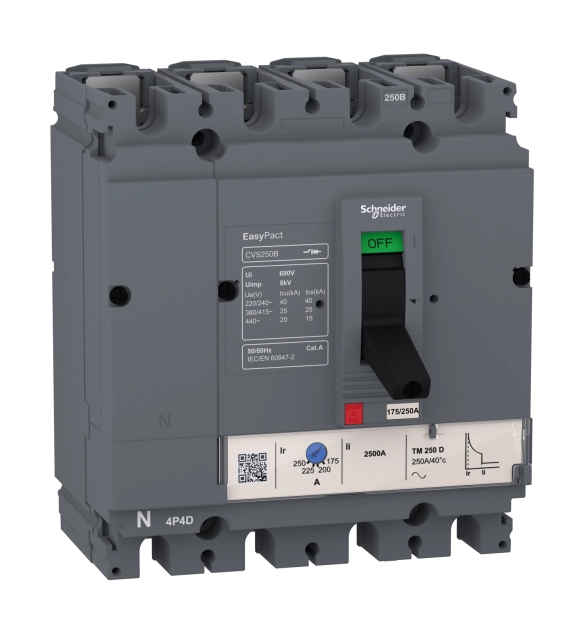

прекъсвач EasyPact CVS250B, 25kA, 415VAC, 200A номинален, термомагнитно TM-D изключващо у-во, 4P 3d

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Device construction
    EV009211
  • Motor drive integrated
    FALSE
  • Motor drive optional
    FALSE
  • Degree of protection (IP)
    EV006415
  • Number of poles
    4
  • Rated permanent current Iu
    250
  • Type of control element
    EV000421
  • DIN rail (top hat rail) mounting optional
    FALSE
  • Position of connection for main current circuit
    EV007926
  • Integrated earth fault protection
    FALSE
  • Suitable for DIN rail (top hat rail) mounting
    FALSE
  • With switched-off indicator
    TRUE
  • With integrated under voltage release
    FALSE
  • Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
    25
  • Complete device with protection unit
    TRUE
  • Rated voltage
    440
  • Number of auxiliary contacts as change-over contact
  • Overload release current setting
  • Adjustment range undelayed short-circuit release

EasyPact CVS250B is a 4 poles 4d fixed circuit breaker with a high level of performance and cost-saving functionality. It is an optimal choice for small and medium-sized buildings protection applications. The breaking capacity (Icu) is 25kA rms at 415VAC 50/60Hz. The operational voltage is 440VAC 50/60Hz. This product embeds a 200A rating thermal-magnetic trip unit (TMD). TMD trip unit provides an adjustable thermal overload protection and a fixed magnetic protection. This 4 poles version (140mm x 161mm x 86mm) comes with a variety of optional functions and accessories. EasyPact CVS250B is compliant with international standards (IEC 60947, CCC, EAC). It can be installed in class II insulation switchboards as it is a class II front face device (IEC 60664-1).
