Автоматичен прекъсвач, ComPacT NSX100F AC/DC, 18kA/240VAC, 1 полюс, TMD изключвателно устройство 16A | Spark & Co
  • 3D
|

СКУ: C10F1TM016

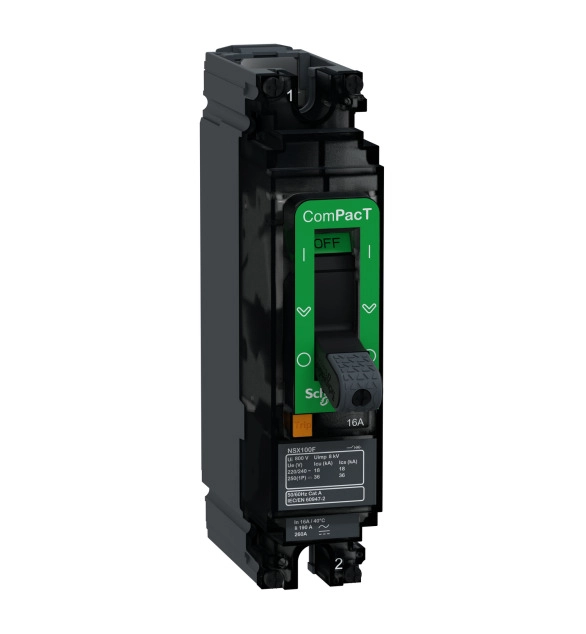

Автоматичен прекъсвач, ComPacT NSX100F AC/DC, 18kA/240VAC, 1 полюс, TMD изключвателно устройство 16A

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Device construction
    EV009211
  • Motor drive integrated
    FALSE
  • Motor drive optional
    FALSE
  • Number of poles
    1
  • Degree of protection (IP)
    EV006415
  • Type of control element
    EV000421
  • Position of connection for main current circuit
    EV007926
  • Integrated earth fault protection
    FALSE
  • Suitable for DIN rail (top hat rail) mounting
    FALSE
  • With switched-off indicator
    TRUE
  • With integrated under voltage release
    FALSE
  • DIN rail (top hat rail) mounting optional
    TRUE
  • Complete device with protection unit
    TRUE
  • Rated voltage
    277
  • Rated permanent current Iu
    16
  • Adjustment range undelayed short-circuit release
    260
  • Overload release current setting
    16
  • Number of auxiliary contacts as normally closed contact
  • Number of auxiliary contacts as normally open contact
  • Number of auxiliary contacts as change-over contact

ComPacT NSX 100F is a complete 1 poles fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 18kA rms at 240VAC 50/60Hz. The operational voltage is 277VAC 50/60Hz. This product embeds a 16A rating thermal-magnetic trip unit (TMD). TMD trip unit provides an fixed thermal overload protection and a fixed magnetic protection. The dimension is 161mm x 35mm x 86mm (H x W x D). It is compliant with international standards (EN/IEC 60947), CCC, EAC and marine specifications.
