MV15B-230 Electric Globe Valve Actuator, 3-Wire Floating, 230 Vac, 1500 N, IP55 | Spark & Co
  • 3D
|

СКУ: 8800460000

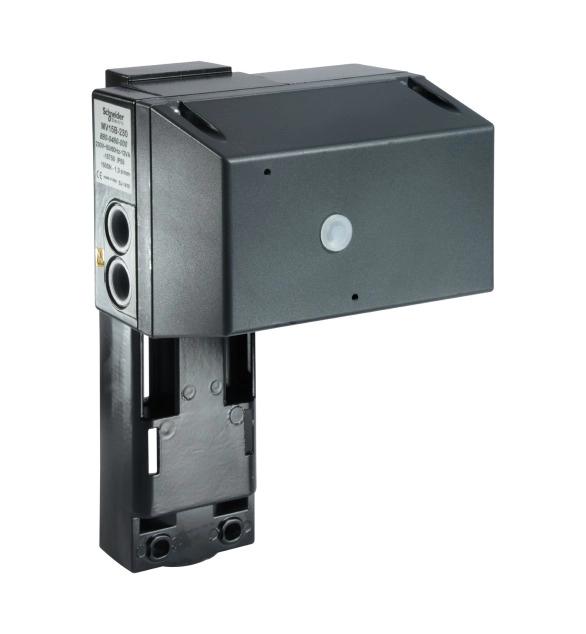

MV15B-230 Electric Globe Valve Actuator, 3-Wire Floating, 230 Vac, 1500 N, IP55

  • Brand
    Schneider Electric
  • Degree of protection (IP)
    EV006415
  • Explosion-proof
    FALSE
  • Width
    225
  • Potential free switch contact
    FALSE
  • Connection to stop valve
    EV000154
  • Adjustable position feedback signal
    TRUE
  • Control signal
    EV000154
  • Deactivated when closed
    TRUE
  • Supply voltage
    EV021410
  • Regulation type splitrange
    FALSE
  • Regulation type modulating
    TRUE
  • Model
    EV020004
  • Return at zero supply voltage
    FALSE
  • Regulation type on/off
    FALSE
  • Suitable for air accessory
    FALSE
  • Position reporting system
    EV000494
  • Suitable for valve
    TRUE
  • Auxiliary contacts optional
    FALSE
  • Material housing
    EV000072
  • Adjustable operating range
    TRUE
  • Automatic travel recognition
    FALSE
  • Allowable relative humidity
  • Type of safety function
    EV000154
  • With mechanical setting indicator
    FALSE
  • Degree of protection (NEMA)
    EV000069
  • Suitable for manual operation
    FALSE
  • End contacts
    EV000494
  • With top flange direct mount according to ISO 5211
    FALSE
  • Self-adjusting travel length
    TRUE
  • Auxiliary contacts
    TRUE
  • Max. electric power input
    15
  • Depth
    312
  • With safety function
    FALSE
  • Height
    228
  • Ambient temperature
    -15
  • Adjusting force
    1500
  • Stroke length
    52
  • Operating time
    27

The SpaceLogic M700 is a spring return electro-mechanical actuator for the control of two-way and three-way globe valves. The electronic circuitry of the actuator ensures that the running time is the same, regardless of the stroke of the valve in question. The actuators is easy to mount and connect. Modulating control signal or increase/decrease signal, Stem Down spring action (the stem is pulled up when power off). Supply voltage: 24 Vac +25%/-35%. Analog Control Input selectable Voltages: 0…10 V, 2…10 v, 0…5 V, 5…10 V, 2…6 V, 6…10 V. Force: 700 N, IP 54 Protection class. Stroke: 9-52 mm. EMC 2014/30/EU, LVD 2014/35/EU. When an end position adjustment is made, The actuator closes the valve and then opens it fully before responding to the control signal.
