СКУ: GV2LE16
Моторен прекъсвач 14A
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Number of poles
3
-
Rated operating voltage
690
-
Rated operation power at AC-3, 400 V
5.5
-
Degree of protection (IP)
EV006405
-
With integrated under voltage release
FALSE
-
Width
45
-
With integrated auxiliary switch
FALSE
-
Switch off technique
EV006116
-
Phase failure sensitive
TRUE
-
Height
89
-
With thermal protection
FALSE
-
Device construction
EV009311
-
Rated permanent current Iu
14
-
Rated operation power at AC-3, 230 V
3
-
Adjustment range undelayed short-circuit release
14
-
Rated short-circuit breaking capacity lcu at 400 V, AC
15
-
Type of control element
EV001252
-
Depth
78.5

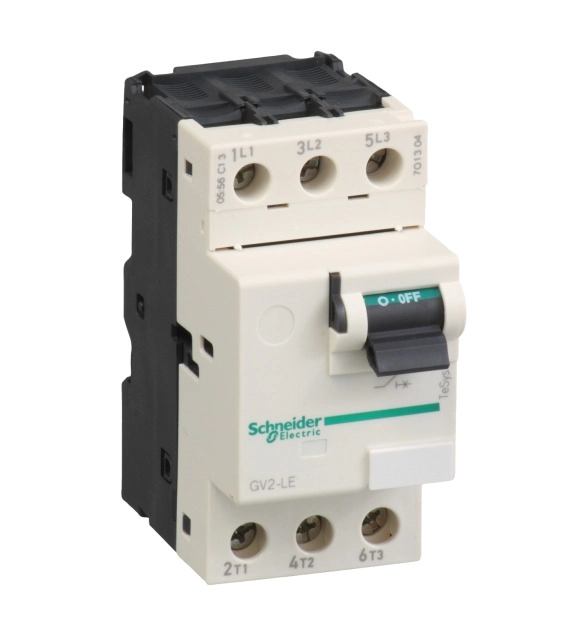

TeSys GV motor circuit breaker, 3 poles (3P), 14A/690V, for 3-phase motor applications 5.5kW/400V. It provides a magnetic protection with a tripping level at 13xIn, high breaking capacity Icu 15kA/400V. Connection by screw clamp terminals. Start-stop control by toggle guaranteed for 100 000 cycles AC-3. To complete motor protection, use in association with a thermal overload relay LRD16 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
