СКУ: TM221CE40R

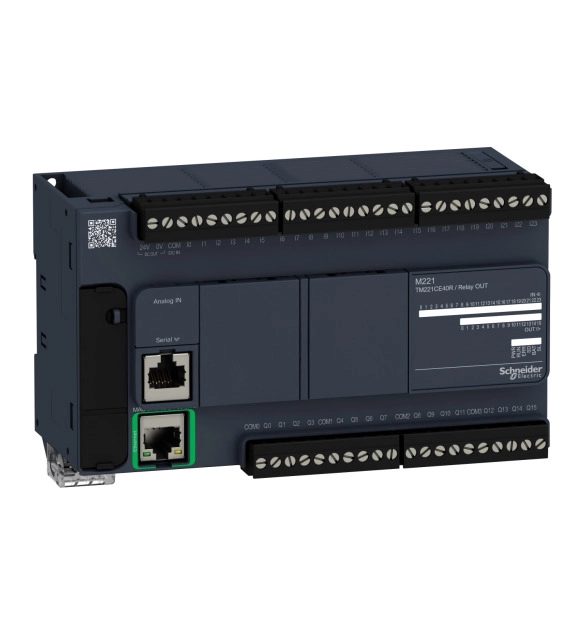

SCHNEIDER ELECTRIC Logic controller, Modicon M221 - 40 I/O Relay Ethernet Com.
-
Brand
Schneider Electric
-
Supporting protocol for SERCOS
FALSE
-
SIL according to IEC 61508
EV000494
-
Performance level according to EN ISO 13849-1
EV000494
-
Radio standard GPRS
FALSE
-
Height
90
-
Supporting protocol for INTERBUS-Safety
FALSE
-
Width
54
-
Supporting protocol for AS-Interface Safety at Work
FALSE
-
Radio standard GSM
FALSE
-
Explosion safety category for dust
EV000494
-
Radio standard UMTS
FALSE
-
Explosion safety category for gas
EV000494
-
Supporting protocol for DeviceNet Safety
FALSE
-
Supporting protocol for EtherNet/IP
FALSE
-
Supporting protocol for Foundation Fieldbus
FALSE
-
Supporting protocol for SafetyBUS p
FALSE
-
Voltage type of supply voltage
EV000461
-
Supporting protocol for PROFINET CBA
FALSE
-
Supporting protocol for PROFINET IO
FALSE
-
Supporting protocol for PROFIsafe
FALSE
-
Supporting protocol for ASI
FALSE
-
Radio standard Bluetooth
FALSE
-
Supporting protocol for PROFIBUS
FALSE
-
Appendant operation agent (Ex ia)
FALSE
-
Radio standard Wi-Fi 802.11
FALSE
-
Supporting protocol for TCP/IP
FALSE
-
Front built-in possible
FALSE
-
Supporting protocol for KNX
FALSE
-
Supporting protocol for CAN
FALSE
-
Appendant operation agent (Ex ib)
FALSE
-
Supporting protocol for INTERBUS
FALSE
-
IO link master
FALSE
-
Supporting protocol for DeviceNet
FALSE
-
Supporting protocol for Modbus
FALSE
-
Suitable for safety functions
FALSE
-
Supporting protocol for Data-Highway
FALSE
-
Supply voltage DC
24
-
Rack-assembly possible
FALSE
-
Supporting protocol for LON
FALSE
-
Supporting protocol for SUCONET
FALSE
-
Rail mounting possible
TRUE
-
Supporting protocol for other bus systems
FALSE
-
With display
FALSE
-
With optical interface
FALSE
-
System accessory
FALSE
-
Number of HW-interfaces parallel
-
Number of interfaces PROFINET
-
Number of HW-interfaces other
-
Number of HW-interfaces Wireless
-
Number of HW-interfaces RS-422
-
Wall mounting/direct mounting
TRUE
-
Number of HW-interfaces RS-485
1
-
Number of HW-interfaces RS-232
1
-
Number of analogue inputs
-
Number of digital outputs
-
Number of analogue outputs
-
Redundancy
FALSE
-
Type of memory
EV000506
-
Supporting protocol for IEC 61850 Ethernet
FALSE
-
Depth
90
-
Number of digital inputs
-
Number of HW-interfaces USB
1
-
Supporting protocol for IEC 60870
FALSE
-
Supporting protocol for DNP3
FALSE
-
Additional program memory possible
TRUE
-
Long-Term Evolution (LTE)
FALSE
-
Number of relay outputs
-
Model
EV000241
-
Max. number of time switches
-
Memory size
64000
-
Number of HW-interfaces industrial Ethernet
2
-
Processing time (1K, binary operation)
3
This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This logic controller provides 14 discrete, 4 fast inputs, 16 transistor, 2 fast outputs with PNP transistor output with 10bit resolution. It is a Modicon logic controller with a rated supply/output voltage of 24V DC, an output current of 0.1A with sink or source input logic and positive output logic. This product requires minimal installation and offers tremendous versatility. Integrated connections are USB port with mini B USB 2.0 connector, non isolated serial link serial 1 with RJ45 connector and RS485 interface and non isolated serial link serial 2 with RJ45 connector and RS232/RS485 interface. It is a Modicon M221 controller with 256kB for user application and data RAM, internal variables RAM, 256kB built-in flash memory and a SD card memory capacity of 2GB. It is an IP20 rated product. Its dimensions are 70mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.27kg. This product is certified by CE, IACS E10, CSA, RCM, LR, ABS, DNV-GL, EAC and CULus. It meets EN/IEC 61010-2-201, EN/IEC 61131-2 and EN/IEC 60664-1 standards. It supports DIN rail mount. Achieve benchmark performance while increasing profitability with Modicon M221 through intuitive machine programming with EcoStruxure Machine Expert Basic.
