СКУ: LUFN11

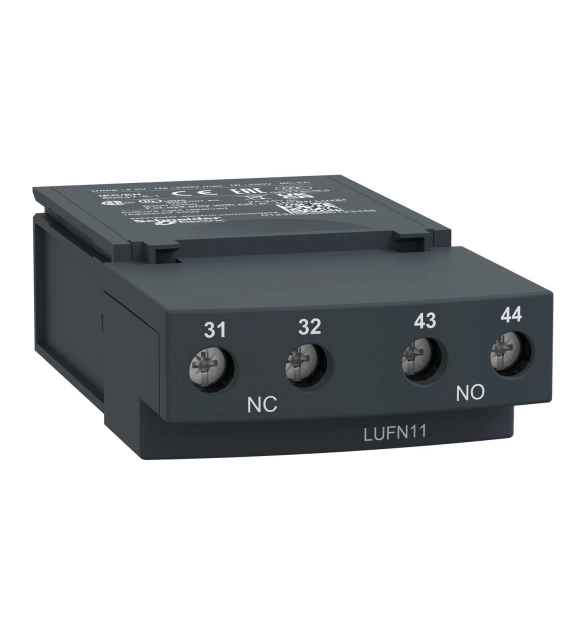

Допълн. блок за моторен пускател MOD 1NO+1NC

  • Brand
    Schneider Electric
  • Number of contacts as normally open contact
    1
  • Type of electric connection
    EV000415
  • Model
    EV003966
  • Number of contacts as normally closed contact
    1
  • Mounting method
    EV000154
  • Rated operation current Ie at AC-15, 230 V
    5
  • Number of contacts as change-over contact
  • Number of fault-signal switches

TeSys U auxiliary signaling contacts module to be inserted in standard power bases LUB12, LUB32, LUB38 or advanced power base LUB120, LUB320, LUB380. It indicates the ON/OFF running status of the motor, whatever the direction of rotation. It provides 1NO+1NC instantaneous auxiliary contacts rated 24-250V AC/DC 5A max. It is powered by the control unit. To be inserted in the cavity of a power base provided for the auxiliary modules. Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine).
