СКУ: EZ9EUA108

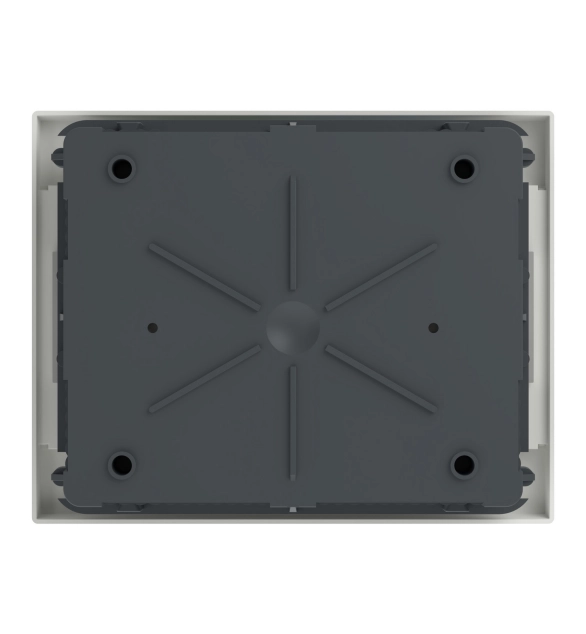

МОДУЛНО ТАБЛО ВГРАДЕН М-Ж 8М ОПУШ. ВРАТA
-
Brand
Schneider Electric
-
With mounting plate
FALSE
-
Extension possible
FALSE
-
RAL-number
9003
-
Colour
EV000202
-
Material housing
EV000139
-
Number of rows
1
-
DIN-rail
TRUE
-
With lock
FALSE
-
EMC-version
FALSE
-
Degree of protection (IP)
EV006415
-
Type of cover
EV004216
-
Transparent cover/door
TRUE
-
Type of closure
EV000154
-
Cover model
EV000116
-
Signal passing door
TRUE
-
Width in number of modular spacings
12
-
Earthing terminal block
TRUE
-
Neutral terminal block
TRUE
-
Mounting method
EV000383
-
Built-in depth
74
-
Height
185
-
Width
285
-
Depth
95.5
This Easy9 product is a low voltage miniature circuit breaker (MCB). It is a 3P circuit breaker with 3 protected pole, 25A In rated current, and a B tripping curve. The Icn rated short circuit breaking capacity is up to 6000A at 400VAC with an operating frequency of 50Hz conforming to IEC 60898-1 standard. It complies with IEC 60898-1 standard. This product has a protection against short circuit and a protection of cable against overloads. It has a fault tripping indication on the front panel by the position of the handle (O-I engraved). This product is dedicated for residential and small commercial buildings. It has an electrical endurance going up to 4000 cycles and a mechanical endurance going up to 10000 cycles. The Ue rated operational voltage is 400VAC with an operating frequency of 50Hz. The Ui rated insulation voltage is 500VAC. It has a Uimp rated impulse withstand voltage of 4kV conforming to IEC 60898-1 standard. It can be mounted on a DIN rail for modular installation. The operating temperature is from -25°C to +60°C. The storage temperature is from -40°C to +85°C.
