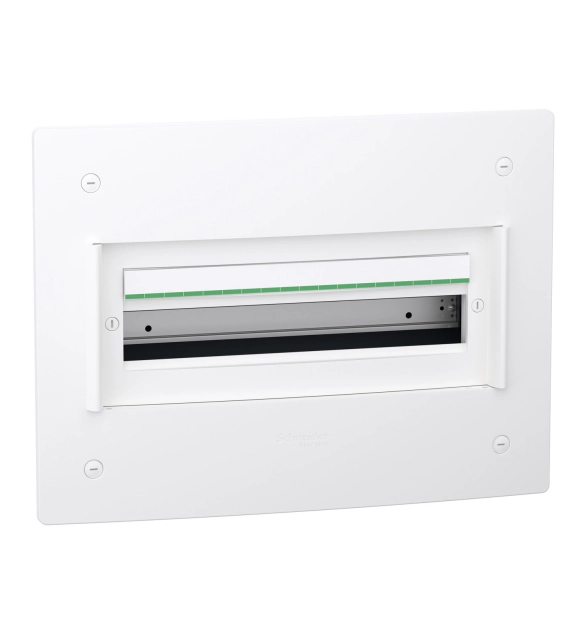

СКУ: LVSXS118
Модулно табло, PrismaSeT XS, вградено, 1 x 18 модула, 1 заземителна + 1 неутрална + 1 фазова клема, без врата
-
Brand
Schneider Electric
-
With mounting plate
FALSE
-
Type of cover
EV001012
-
RAL-number
9003
-
Degree of protection (IP)
EV006410
-
Transparent cover/door
FALSE
-
Cover model
EV009916
-
Signal passing door
FALSE
-
Colour
EV000202
-
Material housing
EV000139
-
Number of rows
1
-
DIN-rail
TRUE
-
With lock
FALSE
-
EMC-version
FALSE
-
Extension possible
TRUE
-
Width in number of modular spacings
18
-
Earthing terminal block
TRUE
-
Neutral terminal block
TRUE
-
Mounting method
EV000383
-
Height
360
-
Built-in depth
86.5
-
Built-in height
330
-
Internal depth
80
-
Width
486
-
Depth
137.5
-
Built-in width
426
This PrismaSeT XS enclosure is a flush mounted distribution enclosure. This plastic enclosure is composed of 1 row of 18 modules of 18mm. It can accomodate all types of modular switchgear. This enclosure is dedicated to indoor installation. The IP degree of protection is IP40 with door and IP30 without door. An optional door can be installed over the cover. The colour of the enclosure and the front face is white (RAL 9003). This ready-to-use enclosure is intended in residental and tertiary sectors. It is devised for electricians, providing ergonomics and flexibility of installation. The cables can enter via the top or bottom of the enclosure by removable cable entry plates. It enables entry by cable or tube. It is equipped with 1 back plate and 1 DIN rail. The rail is removable and facilitates wiring and maintenance operations. It comes with 1 earth, 1 neutral and 1 phase terminal block. The earth terminal block provides 14 outgoers (3x25mm² + 11x4mm²). The neutral and phase terminal blocks provide 7 outgoers (1x35mm² + 6x16mm²). It is provided with 1 identification label, 1 label protector, 1 blanking plate strip and some cable fixing hardware. The electrical insulation class is class II. The Ui rated insulation voltage is 400V. The overvoltage category is II. The In rated current is up to 90A. The dissipated power is 45W. It complies with the IEC 60670-1 and -24 standards. The total dimensions are (W) 486mm x (H) 360mm x (D) 137.5mm. The product weight is 2.900kg. The enclosure and the front plate are made of technoplastic. The back part is made of technoplastic. The resistance of the plastic to flames and to abnormal heat is 750°C for the enclosure and the front plate, and 850°C for the back plate. The IK degree of protection is IK08 without door and IK09 with door. The operating temperature are -25°C to 60°C.
