СКУ: LVSXM424

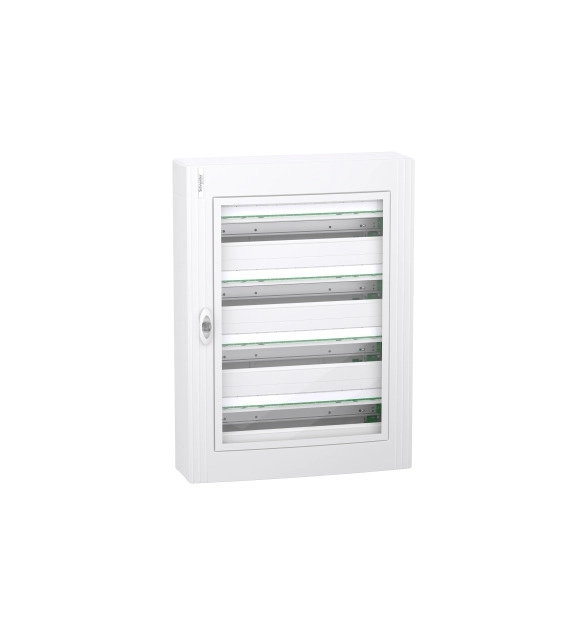

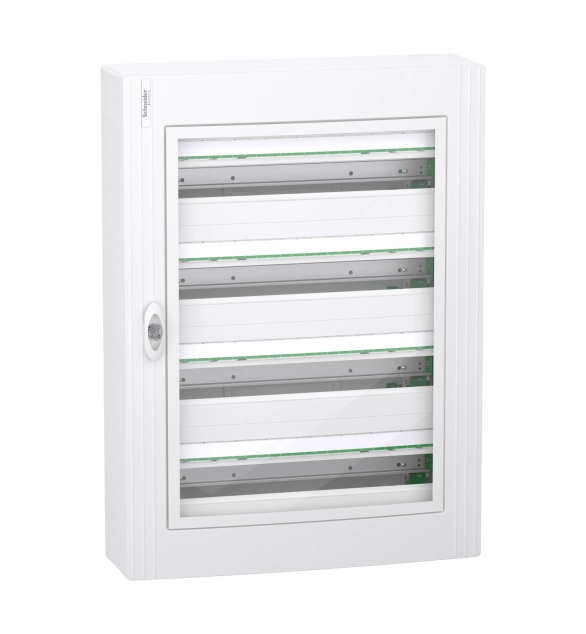

Модулно табло, PrismaSeT XS, открит монтаж, 4 x 24 модула, 1 заземителен клемен блок, модула прозрачна врата
-
Brand
Schneider Electric
-
Colour
EV000154
-
Transparent
FALSE
-
Number of poles
4
-
Halogen free
TRUE
-
Operating temperature
-25
-
Type of electrical connection 1
EV000415
-
Closing plate required
FALSE
-
Material insulation body
EV000403
-
Depth
10
-
Height
20
-
Rated voltage
440
-
Explosion-tested version 'Ex e'
FALSE
-
Width
534
-
Number of clamp positions per pole
5
-
Inflammability class of insulation material according to with UL94
EV004431
-
Mounting method
EV005276
-
Connectable conductor cross section solid-core
2.5
-
Connectable conductor cross section fine-strand with cable end sleeve
2.5
-
Connectable conductor cross section multi-wired
2.5
-
Connectable conductor cross section fine-strand without cable end sleeve
2.5
-
Rated current In
125
This Multi9 C60SP is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 2A rated current and B tripping curve. The rated short circuit breaking capacity goes up to 3kA at 415VAC conforming to EN/IEC 60947-2 standard and 3kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with industrial standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting equipment from electrical threats. This product protects from short circuit and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 18mm x (H) 81mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
