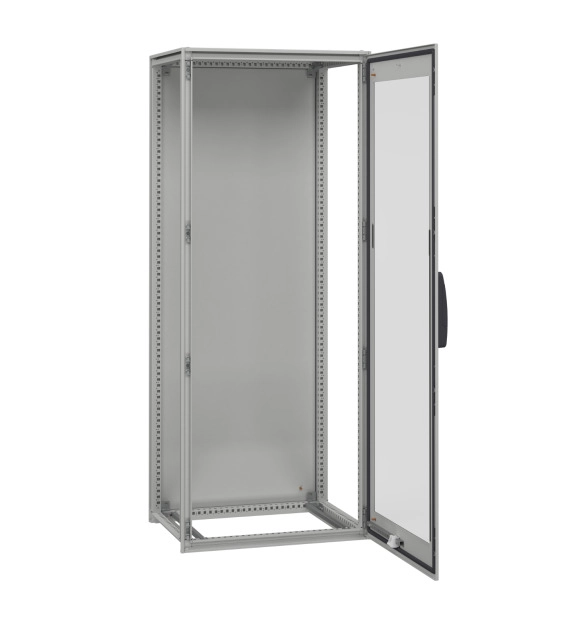

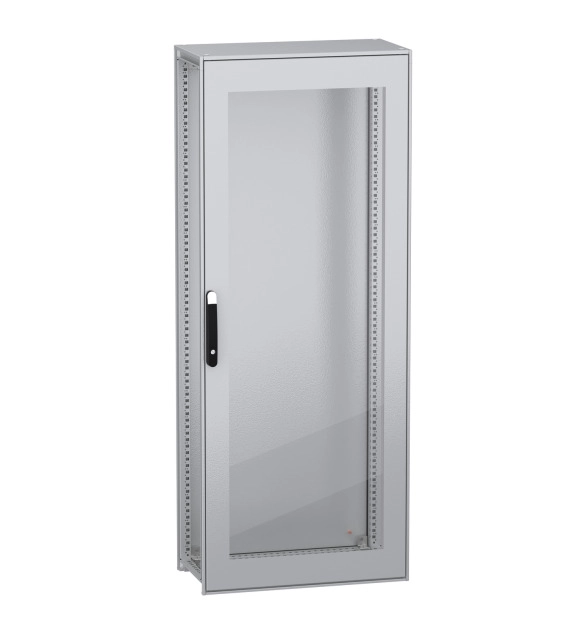

Модулно ел. табло за стоящ монтаж, PanelSeT SFN, декарбонизирана стомана, прозрачна врата, 2000X800X400мм, IP55 | Spark & Co
  • 3D
  • 3D
|

СКУ: NSYSFN20840T

Модулно ел. табло за стоящ монтаж, PanelSeT SFN, декарбонизирана стомана, прозрачна врата, 2000X800X400мм, IP55

  • Brand
    Schneider Electric
  • With mounting plate
    FALSE
  • EMC-version
    FALSE
  • RAL-number
    7035
  • Colour
    EV000270
  • Degree of protection (IP)
    EV006420
  • Surface finishing
    EV008895
  • Material
    EV000179
  • Degree of protection (NEMA)
    EV000154
  • Number of doors
    1
  • With backside door
    FALSE
  • Material quality
    EV000154
  • With glazed door
    TRUE
  • Depth
    800
  • Width
    800
  • Height
    2000
  • Suitable for outdoor set-up
    FALSE
  • Detached
    FALSE
  • Suitable for metrical mounting
    TRUE
  • Pitched roof
    FALSE
  • Floor standing wall model
    TRUE
  • Corner model
    FALSE
  • Suitable for wall mounting
    FALSE
  • Suitable for wall built-in
    FALSE
  • Mounting plate depth-adjustable
    FALSE
  • With ventilation door
    FALSE
  • Pole fastening
    FALSE
  • Impact strength
    EV006814
  • Connectable
    TRUE
  • Number of locks
    1
  • Intermediate mounting
    TRUE
  • Max. permissible load of the mounting plate according to IEC 62208
  • Max. permissible load of the enclosure according to IEC 62208
  • Max. permissible load of the door(s) according to IEC 62208
  • Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890
    912

PanelSeT SBM steel industrial box for a multi-purpose application It is designed for use in harsh environments, it can withstand high impact due its IK10 (IEC62262) and it has a high resistance to dust and water with an IP66 rating (IEC60529) This box has a nominal height, width and depth of 300mm, 300mm and 120mm respectively The box is made in grey color (RAL7035) with a polyester powder surface finish The box consists of 4 cover screw, a cover and a body It has a captive screw PZ2 outside the sealed area The cover can be removed for maintenance purposes The net weight of the enclosure is 3,324kg It is certified by LR, DNV-GL, UL and BV and complies with IEC 62208 standards The box can be wall mounted and the cover is fixed with a half turn metal screw The ambient air temperature for storage and operation is -35 to 60°C and -35 to 80°C respectively
