Модулно ел. табло за стоящ монтаж, PanelSeT SFN, декарбонизирана стомана, прозрачна врата, 2000X1000X500мм, IP55 | Spark & Co
  • 3D
  • 3D
|

СКУ: NSYSFN201050T

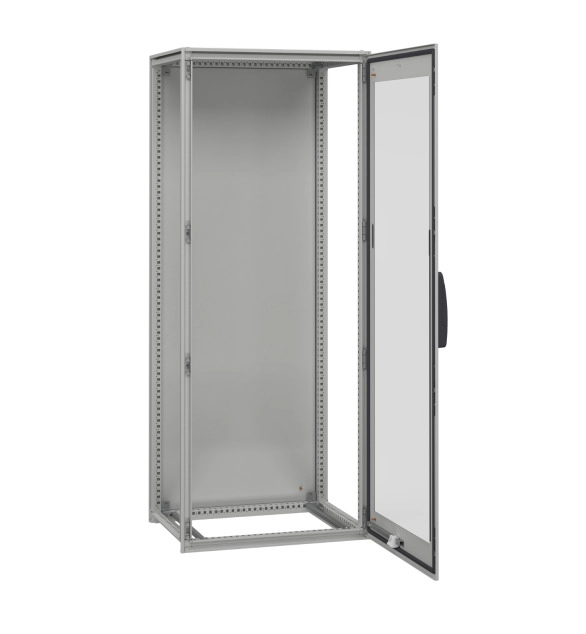

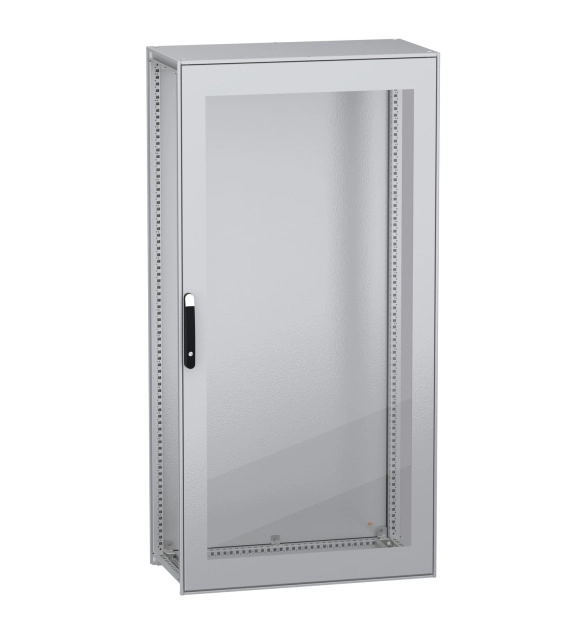

Модулно ел. табло за стоящ монтаж, PanelSeT SFN, декарбонизирана стомана, прозрачна врата, 2000X1000X500мм, IP55

  • Brand
    Schneider Electric
  • With mounting plate
    FALSE
  • EMC-version
    FALSE
  • RAL-number
    7035
  • Colour
    EV000270
  • Degree of protection (IP)
    EV006420
  • Surface finishing
    EV008895
  • Material
    EV000179
  • Degree of protection (NEMA)
    EV000154
  • Number of doors
    1
  • With backside door
    FALSE
  • Depth
    400
  • Material quality
    EV000154
  • With glazed door
    TRUE
  • Width
    1000
  • Height
    2000
  • Suitable for outdoor set-up
    FALSE
  • Detached
    FALSE
  • Suitable for metrical mounting
    TRUE
  • Pitched roof
    FALSE
  • Floor standing wall model
    TRUE
  • Corner model
    FALSE
  • Suitable for wall mounting
    FALSE
  • Suitable for wall built-in
    FALSE
  • Mounting plate depth-adjustable
    FALSE
  • With ventilation door
    FALSE
  • Pole fastening
    FALSE
  • Impact strength
    EV006814
  • Connectable
    TRUE
  • Number of locks
    1
  • Intermediate mounting
    TRUE
  • Max. permissible load of the mounting plate according to IEC 62208
  • Max. permissible load of the enclosure according to IEC 62208
  • Max. permissible load of the door(s) according to IEC 62208
  • Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890
    719

PanelSeT SM is a multi-purpose steel compact monobloc floor-standing enclosure designed for use in harsh environments. It has a nominal height, width and depth of 2000mm, 1200mm and 400mm respectively. The enclosure is made in grey color (RAL7035) with an epoxy-polyester powder surface finish and the handle is made in black color (RAL9005) It consists of one body, two plain doors, one cable gland plate with one entry and four mounting plate brackets. The doors can be opened up to 120°, allowing easy access to the equipment inside. The enclosure has a four-point lock with a handle with 5mm double-bar insert. The doors and the mounting plate brackets can be removed for maintenance purposes. It is certified by BV and UL and marine certified by DNV. This enclosure has IP55 ingress protection rating against dust and water and IK10 impact protectoin rating. It has been certified by DNV, BV and UL and meets IEC 62208 standards It has one cable entry for easy accessibility and operation
