СКУ: 19002

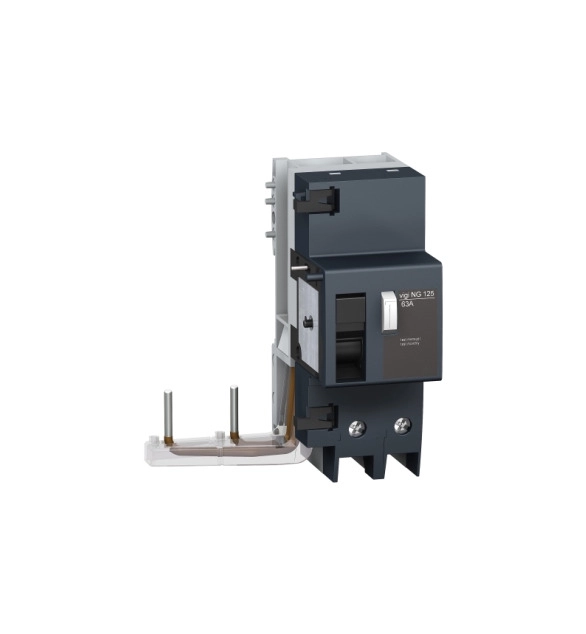

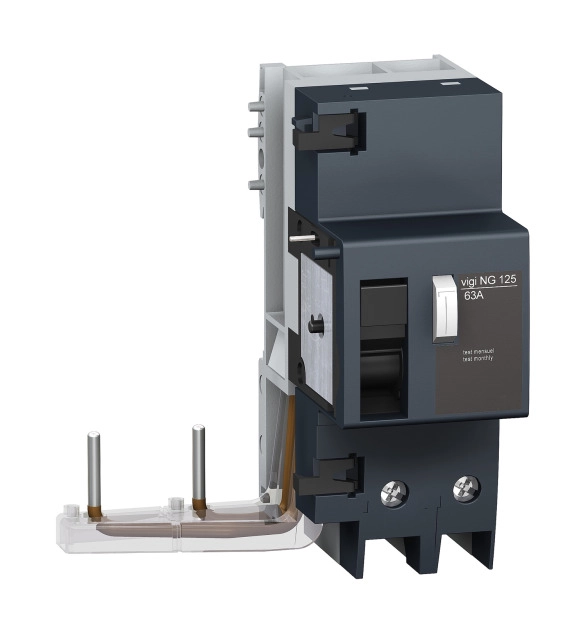

Модулна Дефектнотокова защита Vigi NG125 3P - 63A - 30mA
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Concurrently switching neutral conductor
FALSE
-
Frequency
50
-
Built-in depth
47
-
Rated insulation voltage Ui
690
-
Additional equipment possible
TRUE
-
Rated impulse withstand voltage Uimp
8
-
Voltage type
EV000509
-
Flush-mounted installation
FALSE
-
Explosion-proof
FALSE
-
Connectable conductor cross section solid-core
1.5
-
Over voltage category
4
-
Ambient temperature during operating
-30
-
Connectable conductor cross section multi-wired
1
-
Pollution degree
3
-
Rated current
63
-
Width in number of modular spacings
4.5
-
Number of poles (total)
3
-
Number of protected poles
3
-
Release characteristic
EV000413
-
Rated voltage
415
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
100
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
50
This Vigi NG125 product is a modular add-on residual current device. It is a 3P device with 63A In rated current. The earth leakage protection class is AC type with a sensitivity of 30mA and a voltage independent technology. This product protects against electrical shock by direct contact and fire hazards. This product complies with IEC/EN 60947-2 standard. The Ue rated operational voltage is from 230VAC to 415VAC with an operating frequency of 50Hz to 60Hz. The Ui rated insulation voltage is 690VAC. It has a Uimp rated impulse withstand voltage of 8kV. The pollution degree is 3. The relative humidity is 95% at 55°C. The level of tropicalisation is 2 conforming to IEC 60068-1 standard. It can be mounted on a 35mm symmetrical DIN rail. The width in 9mm pitches is 9. The dimensions are (W) 162mm x (H) 118mm x (D) 81mm. The product weight is 0.41kg. The IP degree of protection is IP20 and becomes IP40 once in a modular enclosure.
