СКУ: 19106
Модулна Дефектнотокова защита NG125 3P - 125A - 300mA
-
Brand
Schneider Electric
-
Colour
EV000206
-
Suitable for switch disconnector
FALSE
-
Suitable for power circuit breaker
TRUE
-
With extension shaft
FALSE
-
Suitable for emergency stop
FALSE

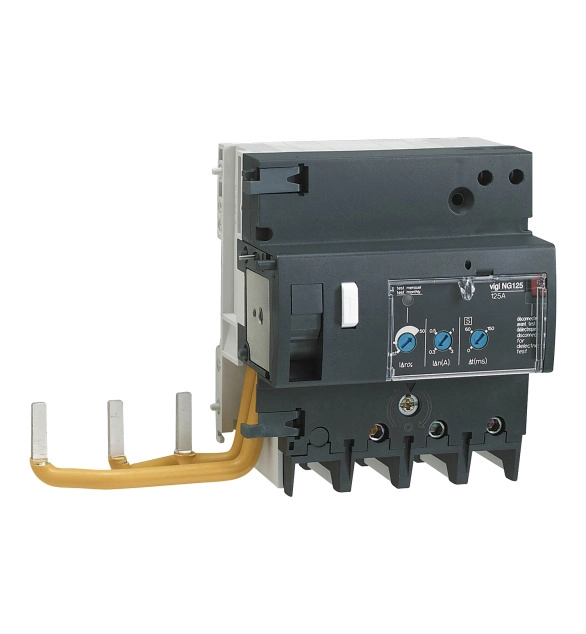

This Vigi NG125 product is a modular add-on residual current device. It is a 4P device with 125A In rated current. The earth leakage protection class is A-SI type with a sensitivity of 300mA and a voltage independent technology. This product protects against electrical shock by indirect contact and fire hazards. The A-SI type provides increased immunity from electrical interference and polluted or corrosive environments. This product complies with IEC/EN 60947-2 standard. The Ue rated operational voltage is from 230VAC to 415VAC with an operating frequency of 50Hz to 60Hz. The Ui rated insulation voltage is 690VAC. It has a Uimp rated impulse withstand voltage of 8kV. The pollution degree is 3. The relative humidity is 95% at 55°C. The level of tropicalisation is 2 conforming to IEC 60068-1 standard. It can be mounted on a 35mm symmetrical DIN rail. The width in 9mm pitches is 11. The dimensions are (W) 207mm x (H) 118mm x (D) 81mm. The product weight is 0.8kg. The IP degree of protection is IP20 and becomes IP40 once in a modular enclosure.
