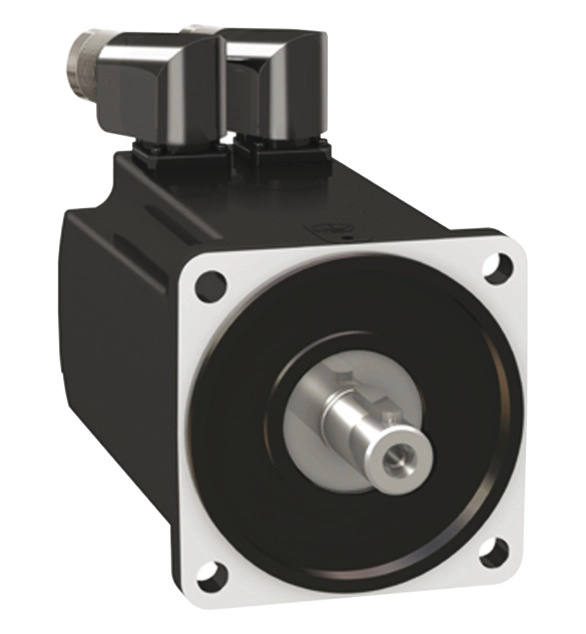

SCHNEIDER ELECTRIC Servo motor BMH - 8.4Nm, 6000 rpm, IP65/IP67 /CF-25-00960/

This product is part of the Lexium 32 range, an offer of servo drives paired with motors for motion control. This synchronous motor has a maximum mechanical speed of 4000RPM, a smooth shaft, an IP54-rated shaft, an IP65-rated housing, and no holding brake. It is equipped with an absolute single-turn encoder, 16 sinusoidal periods per turn. This servo motor is suitable for high-efficiency applications. Its output power is 480V, its continuous stall current is 8.58A, and its continuous power is 2.85W. It is furnished with two rotatable right-angled connectors, 28mm in diameter for the motor connector and 26mm for the encoder connector. Its flange is 140x140mm, and it is a 1-stack length, and it weighs 8kg. This servo motor is suitable for motion and speed applications required in printing, packaging, handling, clamping and material processing. This motor is certified by EN 61800-5-1 2007, EN 60034-1 201O, AC 2010 standards, and conforms to UL. It is compatible with Lexium 32 servo drives type LXM32nD30M2 and LXM32nD30N4, and pre-assembled cables with connectors, type VW3M5nnnn. It is sold individually. It supports the international standard 140mm flange mount with a natural convection cooling system. Lexium 32 is a range that pairs drives and motors to deliver the right power, performance, and functions in motion control solutions.
