СКУ: TM3DQ16UG

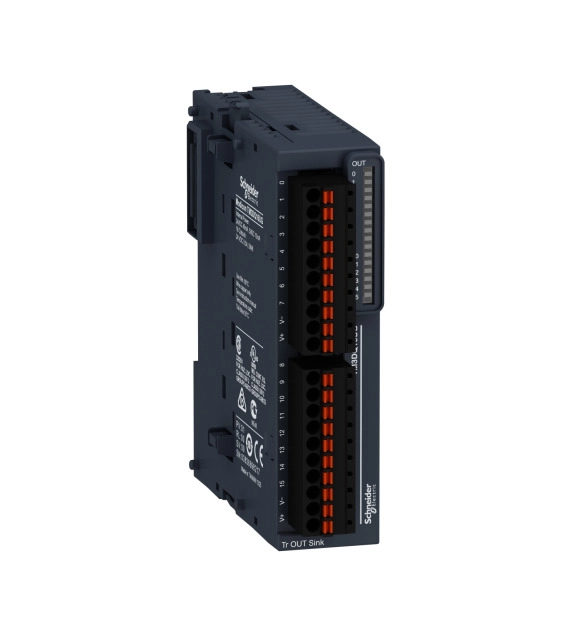

MODULE TM3-16 OUT TR.NPN SPRING
-
Brand
Schneider Electric
-
Type of electric connection
EV005752
-
SIL according to IEC 61508
EV000494
-
Performance level according to EN ISO 13849-1
EV000494
-
Height
90
-
Explosion safety category for dust
EV000494
-
Explosion safety category for gas
EV000494
-
Voltage type of supply voltage
EV000461
-
Appendant operation agent (Ex ia)
FALSE
-
Appendant operation agent (Ex ib)
FALSE
-
Suitable for safety functions
FALSE
-
Supply voltage DC
24
-
Digital inputs configurable
FALSE
-
Digital outputs configurable
FALSE
-
Output current
0.5
-
Short-circuit protection, outputs available
TRUE
-
Type of digital output
EV001529
-
Permitted voltage at output
19.2
-
Time delay at signal exchange
0.45
-
Type of output voltage
EV000509
-
Number of digital outputs
16
-
Number of digital inputs
-
Width
21.4
-
Depth
81.3
This product is part of Modicon TM3, a range of expansion I/O modules for Modicon plcs. This discrete output module provides 16 transistor outputs with source (positive) logic. It is an output module with an output voltage of 24VDC and a current consumption of 20mA at 24VDC via bus connector. This product is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is an insulation between output and internal logic AC, non-insulated between outputs. It works via a 24VDC external power supply. It is furnished with removable screw terminal for electrical connection with pitch 3.81mm adjustment for outputs. It is an IP20-rated product. Its dimensions are 27.4mm wide, 84.6mm deep and 90mm high. It weighs 0.105kg. It is designed to operate or control a device connected to an output module and decisions sent by the PLC. This product is certified by CULus, CE, UKCA, RCM, EAC, and cULus HazLoc. This module is compatible with Modicon M262/M241/M251/M221 logic controllers and is configurable with EcoStruxure machine expert software. It is delivered in 1 package (PCE type). It is mounted on a symmetrical DIN rail. Or with a specific kit for plate or panel mounting. The specially developed Modicon TM3 I/O system enables flexible and customizable expansion of the I/O terminals in all the controllers. From design and development to commissioning and maintenance, EcoStruxure Machine Expert is a complete machine-building solution.
