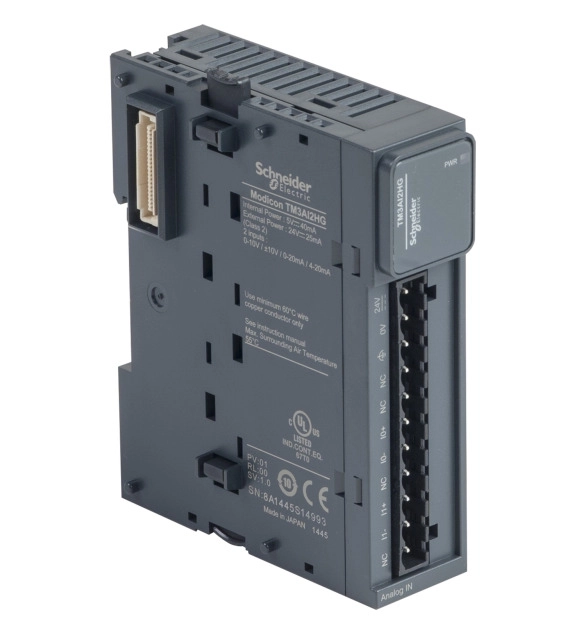

MODULE TM3-2 ANALOG IN HIGH RES. SPRING

This product is part of the Modicon TM3 range, an offer of expansion IO modules for Modicon M221, M241, M251 and M262. The analogue input module provides 2 inputs with 15bit + sign and 16bit resolution. It is an input module with 24VDC rated supply voltage, a current consumption of 30mA (5VDC, no load), 40mA (5VDC, full load), 25mA at 24VDC (external supply). This product is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is an insulation between input and supply at 1500V AC, input and internal logic at 500V AC. It is furnished with removable spring terminal for electrical connection with 5.08mm pitch adjustment for inputs and supply. It is an IP20 rated product. Its dimensions are 23.6mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.1kg. This product is marqued CE. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M241, Modicon M251 and Modicon M221 logic controllers. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules are designed with a smart interlocking assembly mechanism holding an internal bus, it supports data and power supply from the plc. Boost the performance of your controller with the Modicon TM3 IO system specially designed for the Modicon M221, M241 and M251 logic controllers.
