СКУ: HMISAC

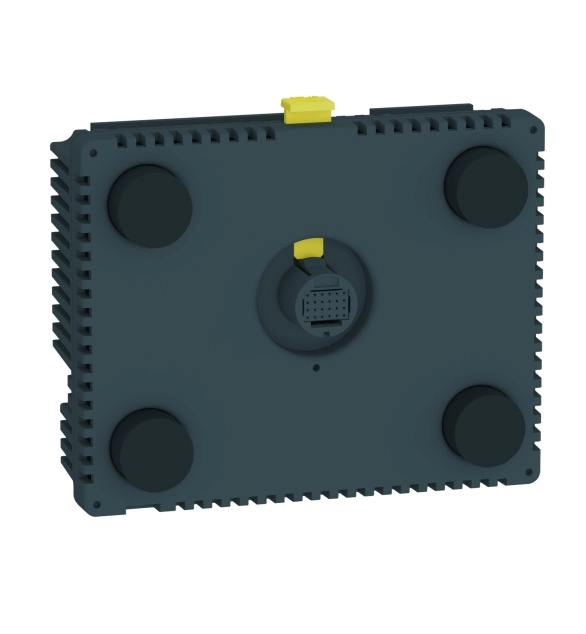

SCHNEIDER ELECTRIC Rear module controller, 16 digital inputs / 10 outputs
-
Brand
Schneider Electric
-
Supporting protocol for SERCOS
FALSE
-
Radio standard GPRS
FALSE
-
Supporting protocol for INTERBUS-Safety
FALSE
-
Supporting protocol for AS-Interface Safety at Work
FALSE
-
Radio standard GSM
FALSE
-
Radio standard UMTS
FALSE
-
Supporting protocol for DeviceNet Safety
FALSE
-
Supporting protocol for Foundation Fieldbus
FALSE
-
Supporting protocol for SafetyBUS p
FALSE
-
Voltage type of supply voltage
EV000461
-
Supporting protocol for PROFINET CBA
FALSE
-
Supporting protocol for PROFINET IO
FALSE
-
Supporting protocol for PROFIsafe
FALSE
-
Supporting protocol for ASI
FALSE
-
Radio standard Bluetooth
FALSE
-
Supporting protocol for PROFIBUS
FALSE
-
Radio standard Wi-Fi 802.11
FALSE
-
Supporting protocol for KNX
FALSE
-
Supporting protocol for INTERBUS
FALSE
-
Supporting protocol for DeviceNet
FALSE
-
Suitable for safety functions
FALSE
-
Supporting protocol for Data-Highway
FALSE
-
Supply voltage DC
24
-
Supporting protocol for LON
FALSE
-
Supporting protocol for SUCONET
FALSE
-
Degree of protection (IP), front side
EV008925
-
Rail mounting possible
TRUE
-
Supporting protocol for other bus systems
FALSE
-
With message indication
FALSE
-
With numeric keyboard
FALSE
-
With alpha numeric keyboard
FALSE
-
With message system (incl. buffer and confirmation)
FALSE
-
Process default value (input) possible
FALSE
-
Supporting protocol for EtherNet/IP
TRUE
-
With SW interfaces
TRUE
-
Supporting protocol for TCP/IP
TRUE
-
Supporting protocol for Modbus
TRUE
-
Number of HW-interfaces USB
2
-
Useful project memory/user memory
128000
-
With printer output
FALSE
-
Additional software components, loadable
TRUE
-
Supporting protocol for CAN
TRUE
-
IO link master
TRUE
-
Width of the front
128
-
Height of the front
102
-
Wall mounting/direct mounting
TRUE
-
Number of HW-interfaces RS-485
1
-
Number of HW-interfaces industrial Ethernet
1
-
Number of HW-interfaces RS-232
1
-
Degree of protection (NEMA), front side
EV014040
-
Process value representation (output) possible
FALSE
-
With recipes
FALSE
-
Number of online languages
4
-
Touch technology
EV000154
-
Operating temperature
-20
-
Built-in depth
50.65
-
With colour display
FALSE
-
Number of HW-interfaces serial TTY
-
Number of HW-interfaces parallel
-
Number of interfaces PROFINET
-
Number of function buttons, programmable
-
Number of HW-interfaces other
-
Number of HW-interfaces Wireless
-
Number of buttons with LED
-
Number of system buttons
-
Number of password levels
-
Number of HW-interfaces RS-422
-
Number of grey-scales/blue-scales of display
-
Number of pixels, horizontal
-
Number of pixels, vertical
This rear module controller offers 16 digital inputs and 10 outputs. It is a controller with a supply voltage of 24V DC. It features CPU RISC processor, 128MB flash NAND, 128kB FRAM internal data storage and 128MB application run DRAM. It is an equipped with 1 serial link, 1 Ethernet TCP/IP - RJ45, 1 USB 2.0 type mini B, 1 USB 2.0 type A and DE-09 D-sub CANopen master bus connections. It is an IP20 (rear panel) conforming to IEC 60529, IP65 (front panel) conforming to IEC 60529 and NEMA 4X front panel rated product. The enclosure is made of PC/PBT. Its dimensions are 128mm (width) x 102mm (depth) x 50.65mm (height). It weighs 0.359kg. This product is certified by GOST, C-Tick, KCC and CULus. It meets ANSI/ISA 12-12-01, UL 508, IEC 61000-6-2 and CSA C22.2 No 213 Class I Division 2 standards. It can be installed into 1mm to 6mm thick panel. The integrated design of Harmony SCU delivers maximum functionality while keeping installation easy. The Harmony SCU (formerly known as Magelis SCU) is designed to operate with the EcoStruxure Machine Expert, delivers adequate functionality for control of small machines.
