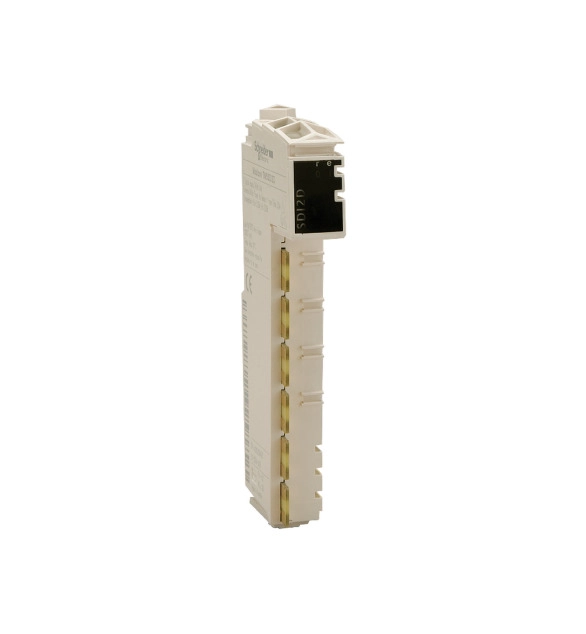

СКУ: TM5SDM12DT
Модул. 24VDC 8DI/4DO TR 1 кабел
-
Brand
Schneider Electric
-
SIL according to IEC 61508
EV000494
-
Performance level according to EN ISO 13849-1
EV000494
-
Explosion safety category for dust
EV000494
-
Explosion safety category for gas
EV000494
-
Voltage type of supply voltage
EV000461
-
Appendant operation agent (Ex ia)
FALSE
-
Appendant operation agent (Ex ib)
FALSE
-
Suitable for safety functions
FALSE
-
Supply voltage DC
24
-
Type of output voltage
EV000461
-
Digital outputs configurable
FALSE
-
Number of digital inputs
8
-
Type of electric connection
EV000414
-
Width
12.5
-
Height
99
-
Depth
75
-
Output current
0.5
-
Short-circuit protection, outputs available
TRUE
-
Type of digital output
EV001529
-
Number of digital outputs
4
-
Digital inputs configurable
TRUE
-
Type of voltage (input voltage)
EV000461
-
Time delay at signal exchange
0.1
-
Input current at signal 1
3.75
-
Permitted voltage at output
20.4
-
Permitted voltage at input
20.4
This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This discrete I/O module provides 8 discrete inputs with sink discrete input logic and 4 source transistor outputs. It provides a rated supply voltage of 24V DC, a current consumption of 42mA at 5V DCbus, 21mA at 24V DC all inputs on, a maximum power dissipation of 1.52W. This product is part of a flexible and scalable I/O configuration for automation solutions. There is an insulation between channel and bus at 500Vrms AC and no insulation between channels. It is furnished with single wire for electrical connection. It is an IP20 rated product. It is furnished with single wire for electrical connection. It is an IP20 rated product. Its housing colour is white.It weighs 0.025kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. This product is compatible with Modicon LMC058 motion controller and Modicon M258 logic controller. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.
