СКУ: TM172PDG28SI

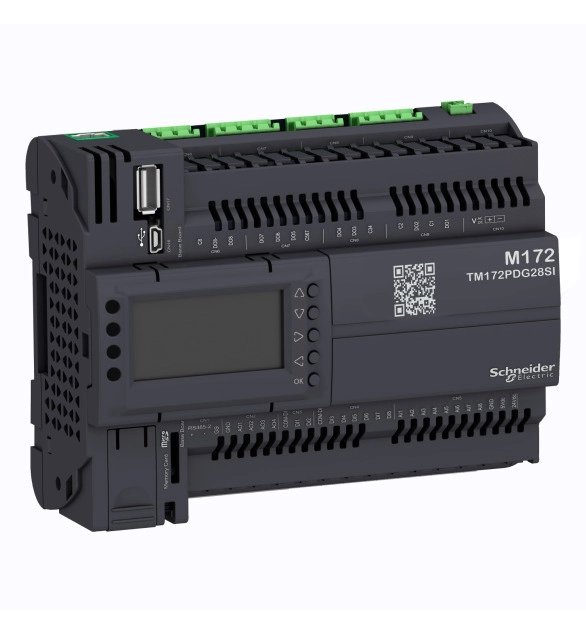

Modicon M172 Performance Display 28 входа/изхода, Eth, тиристорно реле
-
Brand
Schneider Electric
-
Explosion safety category for dust
EV000494
-
Explosion safety category for gas
EV000494
-
Voltage type of supply voltage
EV000461
-
Appendant operation agent (Ex ia)
FALSE
-
Appendant operation agent (Ex ib)
FALSE
-
Supply voltage DC
24
-
Width
55
-
Type of electric connection
EV000154
-
Digital outputs configurable
TRUE
-
Type of digital output
EV000154
-
Type of output voltage
EV000461
-
Number of digital inputs
8
-
Short-circuit protection, outputs available
TRUE
-
Output current
2
-
Number of digital outputs
4
-
Suitable for safety functions
TRUE
-
Digital inputs configurable
TRUE
-
Type of voltage (input voltage)
EV000461
-
Height
45
-
SIL according to IEC 61508
EV000069
-
Performance level according to EN ISO 13849-1
EV010982
-
Input current at signal 1
3.3
-
Permitted voltage at output
24
-
Permitted voltage at input
24
-
Time delay at signal exchange
6
-
Depth
175
This product is part of Modicon TM3, a range of expansion I/O modules for Modicon plcs. This counter module provides 10 fast inputs and 8 fast outputs. It is a high-speed counter with reflex output management and event management. It is used to count the pulses generated by a sensor or to process signals from an incremental encoder. Its counting frequency is 200kHz. It works via a 24VDC external power supply. It is furnished with a removable spring terminal for electrical connection with pitch 3.81mm adjustment for inputs and supply. It is an IP20-rated product. Its dimensions are 39mm wide, 85mm deep and 90mm high. It weighs 0.150kg It is designed to accept high-speed pulse-type input signals for counting and to provide high-speed pulse-type output signals. This product is certified by CSA, cULus, IACS E10, RCM, CE, UKCA and EAC. This module is compatible with Modicon M262 motion/logic controller and is configurable with EcoStruxure machine expert software. It is delivered in 1 package (PCE type). It is mounted on a symmetrical DIN rail. Or with a specific kit for plate or panel mounting. The specially developed Modicon TM3 I/O system enables flexible and customizable expansion of the I/O terminals in all the controllers. From design and development to commissioning and maintenance, EcoStruxure Machine Expert is a complete machine-building solution.
