Миним.напреж.изкл. с времезакъсн. iMNs tripping unit 220-240VAC | Spark & Co
  • 3D
|

СКУ: A9A26963

Миним.напреж.изкл. с времезакъсн. iMNs tripping unit 220-240VAC

  • Brand
    Schneider Electric
  • Width in number of modular spacings
    1
  • Voltage type for actuating
    EV000460
  • Rated voltage
    240
  • With auto test for earth leakage function
    FALSE
  • Suitable for max. number of poles main contact unit (total)
    4
  • Device fitting
    EV000646
  • Installed at the factory
    FALSE
  • Suitable for max. current main contact unit
    63
  • Additional equipment
    EV010155
  • Number of contacts as normally open contact
  • Number of contacts as normally closed contact
  • Number of contacts as change-over contact
  • Number of fault-signal switches

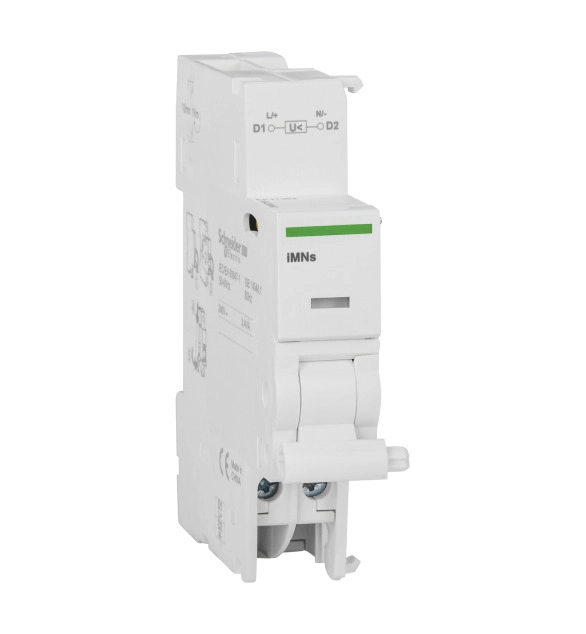

This Acti9 iMN electrical auxiliary is an instantaneous undervoltage release. It is compatible with Acti9 ranges. It prevents device closing again until its input voltage has been restored. The width in 9mm pitches is 2. The Uc control circuit voltage is 220…240VAC. It can be mounted on a DIN rail for modular installation. The product color is white (RAL9003). The operating temperature is -25°C to + 50°C. The storage temperature is -40°C to + 85°C. This product complies with IEC/EN 60947-5-1 standards.
