СКУ: ABFTE20SP100

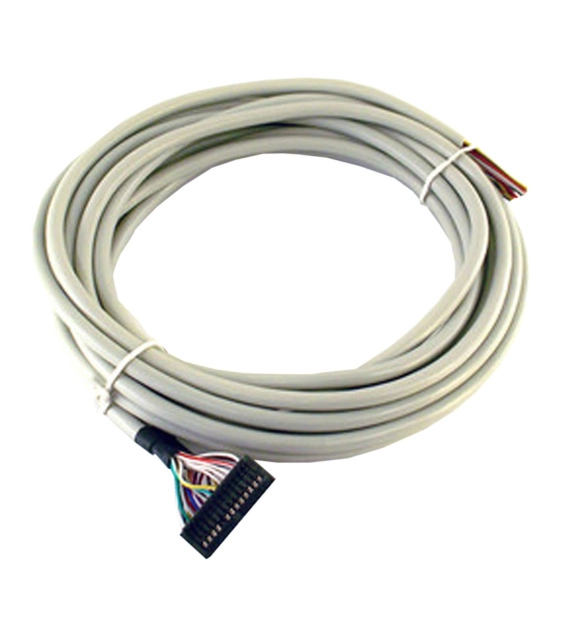

TWIDO CABLE OUT EXT PNP
-
Brand
Schneider Electric
-
Type of electric connection
EV000415
-
Degree of protection (IP)
EV006405
-
SIL according to IEC 61508
EV000494
-
Performance level according to EN ISO 13849-1
EV000494
-
Height
125
-
Rail mounting possible
TRUE
-
Voltage type of supply voltage
EV000460
-
Depth
102
-
Modular version
FALSE
-
Suitable for safety functions
TRUE
-
Width
32
-
Direct mounting possible
TRUE
-
Short-circuit-proof
TRUE
-
Secondary voltage adjustable
FALSE
-
Nominal value output voltage 1
24
-
Wall mounting possible
FALSE
-
Rated supply voltage at AC 50 Hz
100
-
Rated supply voltage at AC 60 Hz
100
-
Output voltage stabilized
FALSE
-
Power output
75
-
Stabilized
FALSE
-
Nominal value output current 1
6.3
-
Max. output current 1
6.3
-
1st secondary output voltage
12
This product is part of the Modicon ABL range, an offer of power supplies for industrial use. It is a regulated switch mode power supply. It has a rated input of 100V to 500VAC, a rated output current of 3A at 24VDC and a rated power output of 72W. It supplies direct current voltage and ensures a protection against overloads and short-circuits with automatic or manual restart. It has LED diagnostics indicator available in the front for troubleshooting instantly. It operates from minus 25degrees celcius to plus 50degrees celcius, and from 0meter to 2000meters. It measures 125mm high, 45mm wide and 125mm deep. It weighs 0.3kg. It is a power supply for industrial use. It conforms to CE marking, CCSAus, EAC, KC, RCM and UL certifications. GB2CD07, GV2RT06, GV2ME06 thermal magnetic circuit breakers are recommanded for its protection. It is delivered as a single piece (PCE packaging). It is mounted on a 35mm DIN rail. It brings energy to your automated systems. Designed with extreme compactness for simple machines and applications.
