СКУ: TM172E12R

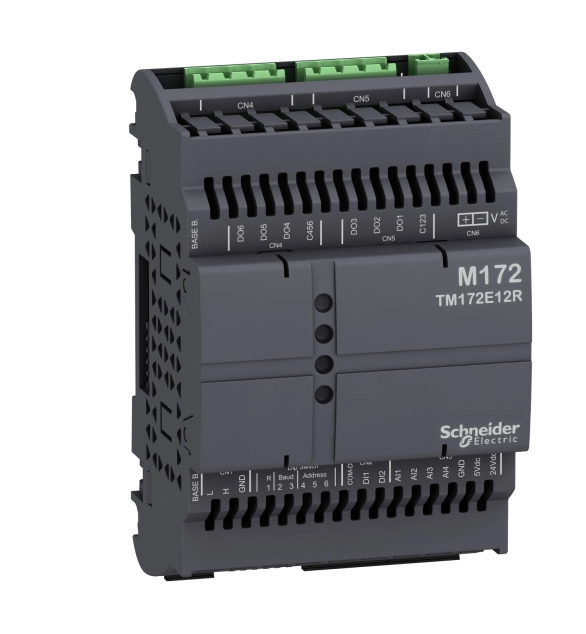

Modicon M172 Оптимизиран с разширение за производителност 12 входа/изхода
-
Brand
Schneider Electric
-
Type of electric connection
EV000415
-
SIL according to IEC 61508
EV000494
-
Performance level according to EN ISO 13849-1
EV000494
-
Explosion safety category for dust
EV000494
-
Explosion safety category for gas
EV000494
-
Appendant operation agent (Ex ia)
FALSE
-
Appendant operation agent (Ex ib)
FALSE
-
Suitable for safety functions
FALSE
-
Width
72
-
Analogue input, thermocouple
FALSE
-
Analogue input, resistor
FALSE
-
Analogue output, voltage
FALSE
-
Analogue output, current
FALSE
-
Short-circuit protection, digital outputs available
FALSE
-
Voltage type of supply voltage
EV000509
-
Number of analogue inputs
4
-
Type of digital output
EV000511
-
Height
110
-
Depth
59
-
Analogue input, resistor temperature
TRUE
-
Analogue input signal configurable
TRUE
-
Type of voltage (input voltage)
EV000461
-
Type of output voltage
EV000460
-
Supply voltage AC 50 Hz
24
-
Supply voltage AC 60 Hz
24
-
Number of digital outputs
6
-
Number of digital inputs
2
-
Input current at signal 1
0.5
-
Time delay at signal exchange
200
-
Analogue input, current
TRUE
-
Analogue output signal configurable
TRUE
-
Resolution of the analogue inputs
13
-
Output voltage at digital output
240
-
Digital in-/outputs, configurable
FALSE
-
Analogue input, voltage
TRUE
-
Output current at digital output
3
-
Supply voltage DC
20
-
Number of analogue outputs
-
Permitted voltage at input
This I/O expansion module is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications. This additional I/O module offers 2 digital inputs, 4 analog inputs, and 6 digital outputs. It is connected via the CAN expansion bus of the M172 and M173 logic controllers. It increases the number of I/O up to 78 on M173 logic controllers, and up to 238 on M172 logic controllers. DIs are high-speed counters. The AIs are NTC, PT1000, PTC, 0-20mA, 4-20mA, 0-5V, 0-10V, hOhm, daOhm, and DIs. DOs are SPST 3A with the same common. It measures 72mm wide, 59mm deep, 110mm high, and weighs 0.140kg. It allows the expansion of the number of IOs on the HVAC controllers. It is certified by CE, RCM, EAC, CSA and CURus. It is compatible with M173 Optimized and M172 logic controllers. It is sold in a 1-piece package. It mounts on 35mm DIN rail. Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines. Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications.
