Modicon M172 Оптимизиран с разширение за производителност 28 входа/изхода | Spark & Co
  • 3D
|

СКУ: TM172E28R

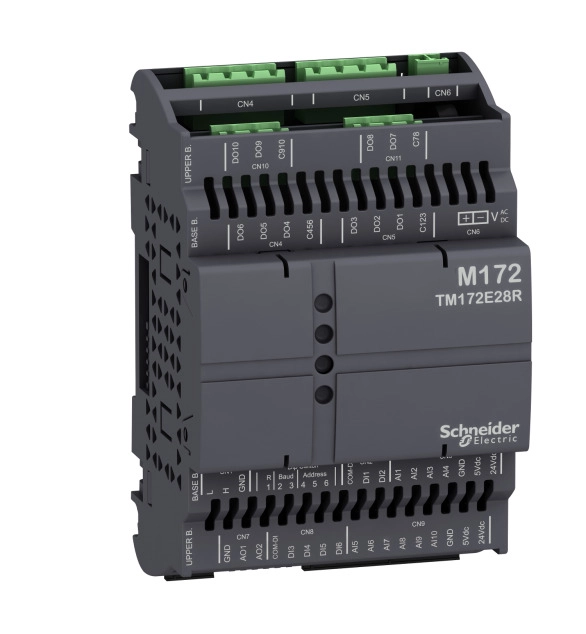

Modicon M172 Оптимизиран с разширение за производителност 28 входа/изхода

  • Brand
    Schneider Electric
  • Type of electric connection
    EV000415
  • SIL according to IEC 61508
    EV000494
  • Performance level according to EN ISO 13849-1
    EV000494
  • Explosion safety category for dust
    EV000494
  • Explosion safety category for gas
    EV000494
  • Appendant operation agent (Ex ia)
    FALSE
  • Appendant operation agent (Ex ib)
    FALSE
  • Suitable for safety functions
    FALSE
  • Width
    72
  • Analogue input, thermocouple
    FALSE
  • Analogue input, resistor
    FALSE
  • Short-circuit protection, digital outputs available
    FALSE
  • Voltage type of supply voltage
    EV000509
  • Number of analogue outputs
    2
  • Type of digital output
    EV000511
  • Height
    110
  • Depth
    59
  • Analogue input, resistor temperature
    TRUE
  • Analogue input signal configurable
    TRUE
  • Type of voltage (input voltage)
    EV000461
  • Type of output voltage
    EV000460
  • Number of digital inputs
    6
  • Supply voltage AC 50 Hz
    24
  • Supply voltage AC 60 Hz
    24
  • Number of digital outputs
    10
  • Input current at signal 1
    0.5
  • Time delay at signal exchange
    200
  • Analogue input, current
    TRUE
  • Analogue output, voltage
    TRUE
  • Resolution of the analogue outputs
    13
  • Analogue output signal configurable
    TRUE
  • Resolution of the analogue inputs
    13
  • Analogue output, current
    TRUE
  • Output voltage at digital output
    240
  • Digital in-/outputs, configurable
    FALSE
  • Analogue input, voltage
    TRUE
  • Output current at digital output
    3
  • Supply voltage DC
    20
  • Permitted voltage at input
  • Number of analogue inputs
    10

This I/O expansion module is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications. This additional I/O module offers 6 digital inputs, 10 analog inputs, and 10 digital outputs, and 2 analog outputs. It is connected via the CAN expansion bus of the M172 and M173 logic controllers. It increases the number of I/O up to 78 on M173 logic controllers, and up to 238 on M172 logic controllers. DIs are 24 VACDC, high-speed counters, AIs are NTC, PT1000, PTC, 0-20mA, 4-20mA, 0-5V, 0-10V, hOhm, daOhm. DOs are SPST 3A with the same common, AOs are 0-10V, 4-20mA, PWM (2kHz, 24 Vdc). It measures 72mm wide, 59mm deep, 110mm high, and weighs 0.190kg. It allows the expansion of the number of IOs on the HVAC controllers. It is certified by CE, RCM, EAC, CSA and CURus. It is compatible with M173 Optimized and M172 logic controllers. It is sold in a 1-piece package. It mounts on 35mm DIN rail. Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines. Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications.
