Modicon M171 Приставка за производителност RS232 с реле | Spark & Co
  • 3D
|

СКУ: TM171ARS232

Modicon M171 Приставка за производителност RS232 с реле

  • Brand
    Schneider Electric
  • Supporting protocol for SERCOS
    FALSE
  • SIL according to IEC 61508
    EV000494
  • With potential separation
    TRUE
  • Performance level according to EN ISO 13849-1
    EV000494
  • Radio standard GPRS
    FALSE
  • Supporting protocol for INTERBUS-Safety
    FALSE
  • Supporting protocol for AS-Interface Safety at Work
    FALSE
  • Radio standard GSM
    FALSE
  • Explosion safety category for dust
    EV000494
  • Radio standard UMTS
    FALSE
  • Explosion safety category for gas
    EV000494
  • Supporting protocol for DeviceNet Safety
    FALSE
  • Supporting protocol for EtherNet/IP
    FALSE
  • Supporting protocol for Foundation Fieldbus
    FALSE
  • Supporting protocol for SafetyBUS p
    FALSE
  • Supporting protocol for PROFINET CBA
    FALSE
  • Supporting protocol for PROFINET IO
    FALSE
  • Supporting protocol for PROFIsafe
    FALSE
  • Supporting protocol for ASI
    FALSE
  • Radio standard Bluetooth
    FALSE
  • Supporting protocol for PROFIBUS
    FALSE
  • Appendant operation agent (Ex ia)
    FALSE
  • Radio standard Wi-Fi 802.11
    FALSE
  • Supporting protocol for TCP/IP
    FALSE
  • Supporting protocol for KNX
    FALSE
  • Supporting protocol for CAN
    FALSE
  • Appendant operation agent (Ex ib)
    FALSE
  • Supporting protocol for INTERBUS
    FALSE
  • IO link master
    FALSE
  • Supporting protocol for DeviceNet
    FALSE
  • Suitable for safety functions
    FALSE
  • Supporting protocol for Data-Highway
    FALSE
  • Supporting protocol for LON
    FALSE
  • Supporting protocol for SUCONET
    FALSE
  • Supporting protocol for other bus systems
    FALSE
  • With optical interface
    FALSE
  • Supporting protocol for Modbus
    TRUE
  • Number of HW-interfaces RS-232
    1
  • Redundancy
    FALSE
  • Width
    35
  • Type of data transmission
    EV001143
  • Height
    110
  • Transmission rate
    100000
  • Depth
    54
  • Number of HW-interfaces parallel
  • Number of interfaces PROFINET
  • Number of HW-interfaces serial TTY
  • Number of HW-interfaces USB
  • Number of HW-interfaces Wireless
  • Number of HW-interfaces RS-422
  • Number of HW-interfaces RS-485
  • Number of HW-interfaces industrial Ethernet
  • Number of HW-interfaces other

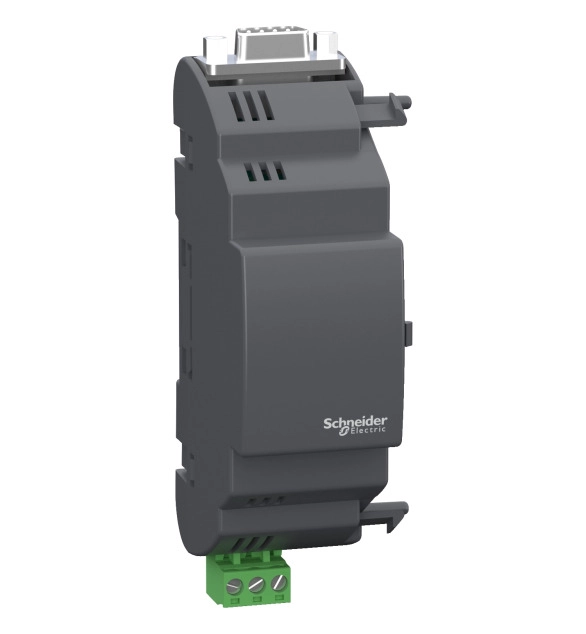

This communication module is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications. This optional module provides a specific connection to the RS 232 serial link. It has one SUB-D 9-contact as a communication port. It allows the HVAC controller to manage Data on the RS 232 serial link. It measures 100mm high, 35mm wide and 53.93mm deep, and weighs 0.077kg. This communication module allows controllers to get an additional communication port. It is certified by CE, CSA, cURus, and EAC. It is compatible with M172 Optimized, M172 Performance, and M171 Performance logic controllers. It is sold in a 1-piece package. It is mounted by simply interlocking on the left-hand side of M171 Performance or M172 logic controllers. Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines. Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications.
