Контактор, TeSys F, 3P(3NO), AC-3, <=440V 1000 A, coil 400 V AC | Spark & Co
  • 3D
|

СКУ: LC1F1000V7

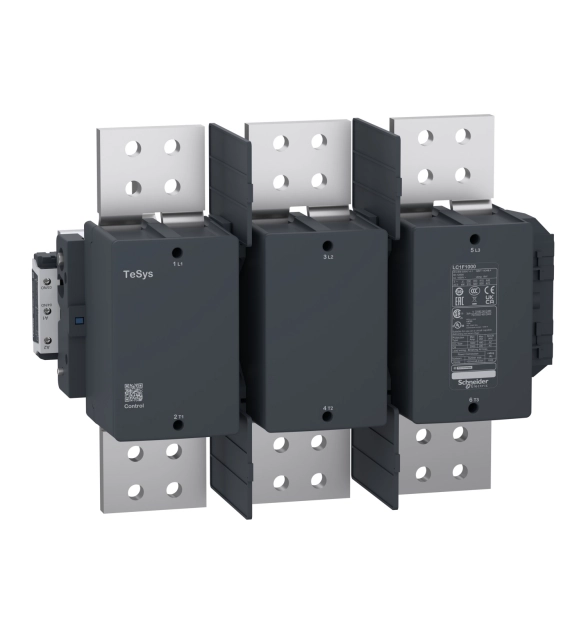

Контактор, TeSys F, 3P(3NO), AC-3, <=440V 1000 A, coil 400 V AC

  • Brand
    Schneider Electric
  • Voltage type for actuating
    EV000460
  • Type of electrical connection of main circuit
    EV008864
  • Rated control supply voltage Us at AC 50HZ
    230
  • Number of auxiliary contacts as normally closed contact
  • Number of auxiliary contacts as normally open contact
  • Rated control supply voltage Us at AC 60HZ
    230
  • Modular version
    FALSE
  • Number of normally closed contacts as main contact
  • Number of normally open contacts as main contact
    3
  • Rated operation power at AC-3, 400 V
    560
  • Rated operation current Ie at AC-1, 400 V
    1250
  • Rated operation current Ie at AC-3, 400 V
    1000

TeSys K contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3 (4kW/400V), and for non-inductive load control applications up to 20A/690V AC-1. It provides a 110V 50/60Hz AC coil, 1NO built-in auxiliary contact, connection by screw clamp terminals. For operating rates until 600 cycles/hour and environments until 50°C, it procures reliability and durability to standard applications. Very compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC).
