СКУ: NSYPLM68G
Landscape (Horizontal) табло полиестер monobloc IP66 H636xW847xD300mm
-
Brand
Schneider Electric
-
Material
EV000139
-
With mounting plate
FALSE
-
EMC-version
FALSE
-
RAL-number
7035
-
Colour
EV000270
-
With glazed door
FALSE
-
Number of doors
1
-
With backside door
FALSE
-
Degree of protection (NEMA)
EV014040
-
Degree of protection (IP)
EV006422
-
Depth
300
-
Detached
FALSE
-
Suitable for metrical mounting
TRUE
-
Pitched roof
FALSE
-
Intermediate mounting
FALSE
-
Corner model
FALSE
-
Mounting plate depth-adjustable
FALSE
-
With ventilation door
FALSE
-
Suitable for wall mounting
TRUE
-
Impact strength
EV008784
-
Suitable for outdoor set-up
TRUE
-
Surface finishing
EV006034
-
Material quality
EV000819
-
Suitable for wall built-in
TRUE
-
Pole fastening
TRUE
-
Number of locks
2
-
Width
847
-
Height
636
-
Max. permissible load of the mounting plate according to IEC 62208
72
-
Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890
187
-
Max. permissible load of the enclosure according to IEC 62208
96
-
Max. permissible load of the door(s) according to IEC 62208
24

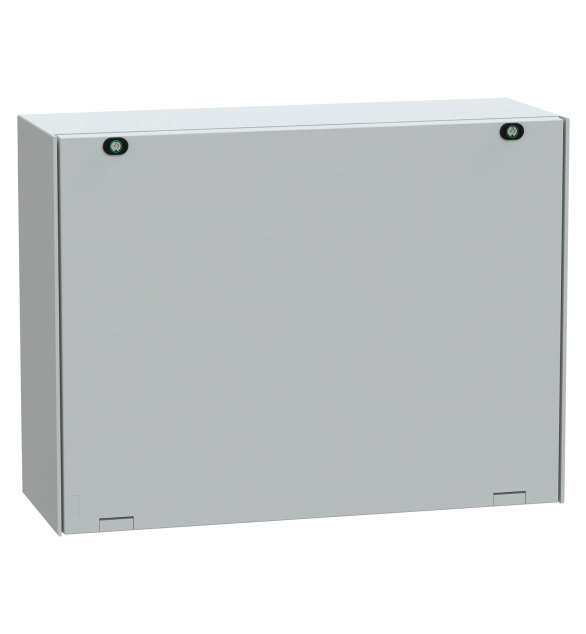

This PanelSeT PLM landscape (formerly PanelSeT PLM) enclosure comes in grey colour and it's designed for multi-purpose application and photovoltaic (Solar). It is composed of body, door, lock. Featuring a removable door by cut hinges. It is made of polyester reinforced with fiberglass, which offers durability and resistance to industrial, harsh and outdoor environments. The polyester material is made with 37% of recycled material content. Its packaging is made of 75% recycled carboard and without single-use plastic. The enclosure comes in a grey (RAL 7035) color. The dimensions are (W) 847 mm x (H) 636 mm x (D) 300 mm. The enclosure offers high protection against dust and water with an IP66 rating (IEC 60529). It is also highly resistant to impacts, with an IK10 rating (IEC 62262), and offers protection against electric shocks with a class II electrical insulation rating. The enclosure is suitable to build array combiner boxes. The enclosure is also fire resistant up to 960 °C (IEC 62208) and meets NEMA classification 13 and 4X standards, as well as IEC 62208.. It well satisfied the standard of IEC 62208, NEMA classification 13, NEMA classification 4X. This compact enclosure is BV, UL certified.
