СКУ: RXM4AB1ED
Миниатюрно реле 48V DC 4 CO RXM4AB1ED
-
Brand
Schneider Electric
-
Voltage type for actuating
EV000460
-
Degree of protection (IP)
EV006415
-
With detachable clamps
FALSE
-
Width
21
-
Number of contacts as change-over contact
4
-
Rated control supply voltage Us at AC 50HZ
230
-
Number of contacts as normally closed contact
-
Number of contacts as normally open contact
-
With LED indication
TRUE
-
Rated control supply voltage Us at AC 60HZ
230
-
Depth
55
-
Drive, switching attitude
EV005821
-
Drive, polarization
EV005820
-
Complete with socket
FALSE
-
Material of contact insert
EV000154
-
Material of contact surface
EV000154
-
Material contact
EV000154
-
Type of electric connection
EV000414
-
Height
27
-
With forced-guided contacts
FALSE
-
Type of switch contact
EV000154
-
Nominal current
6

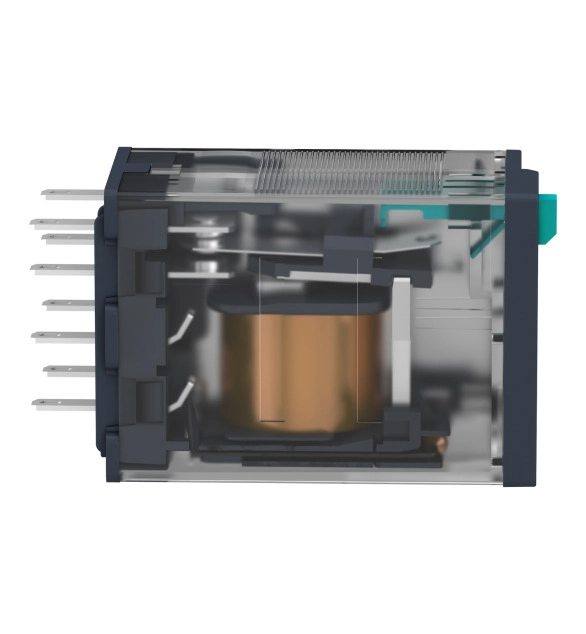

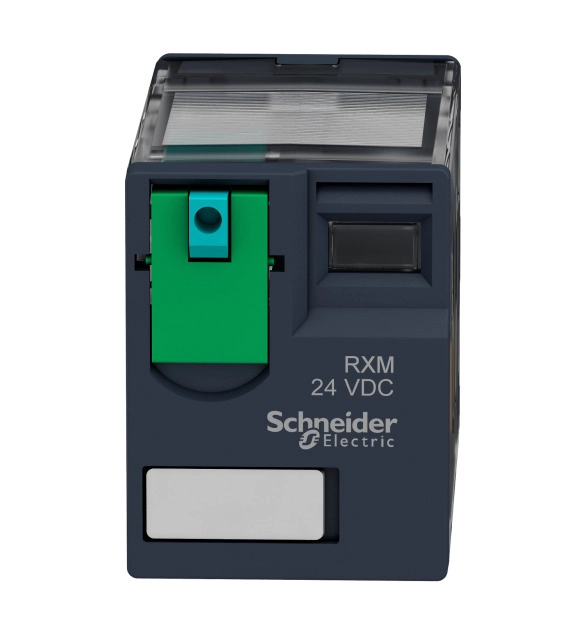

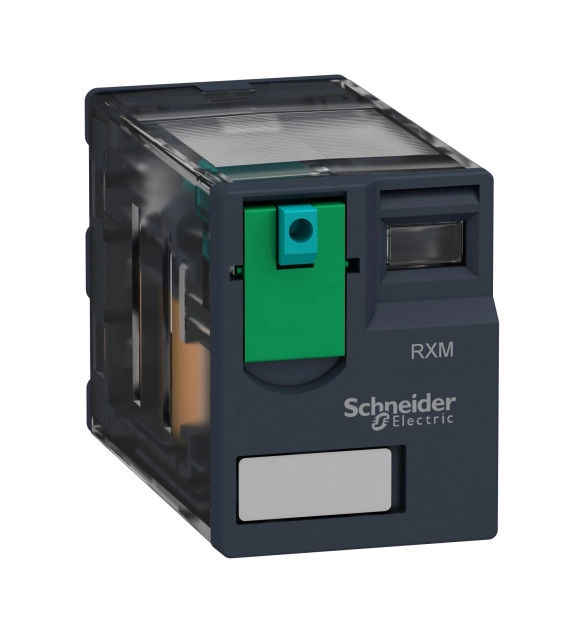

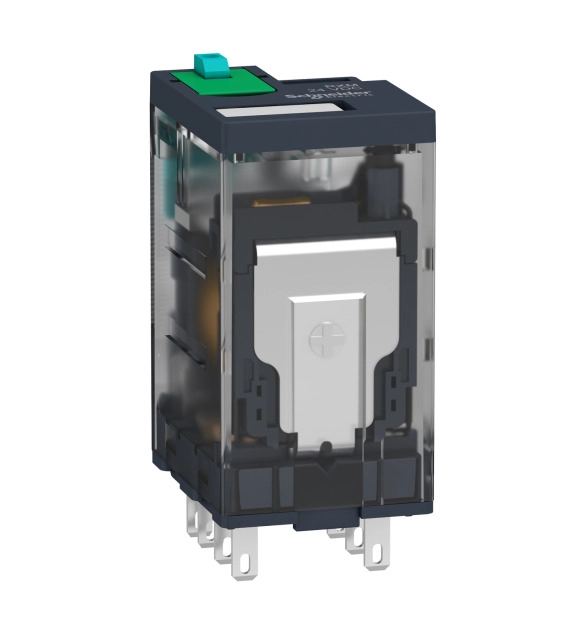

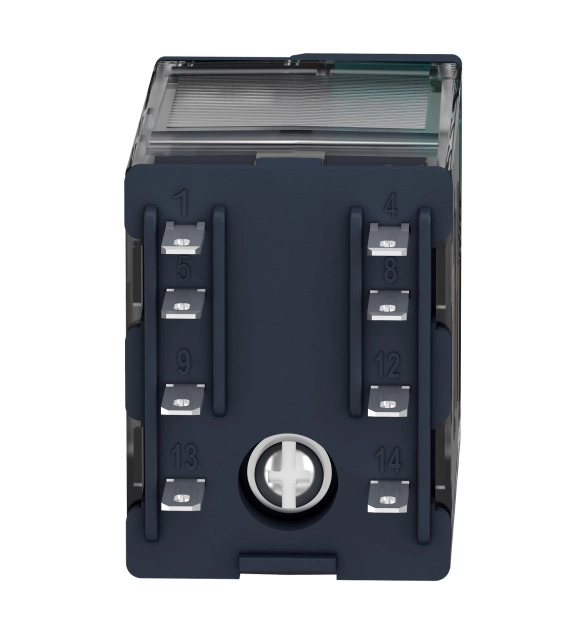

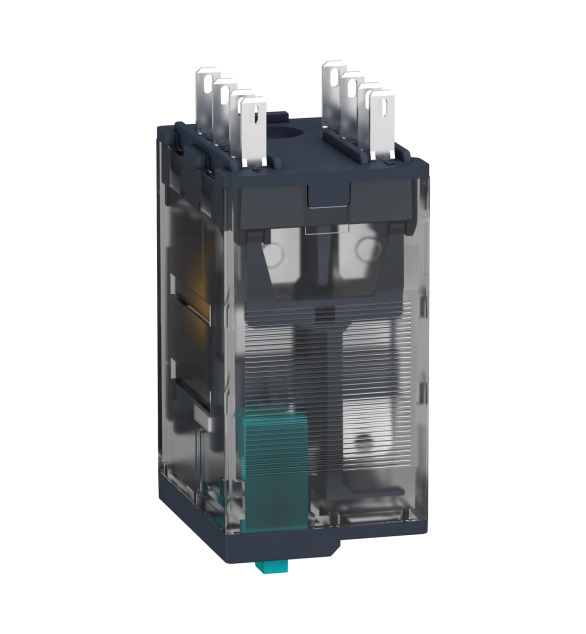

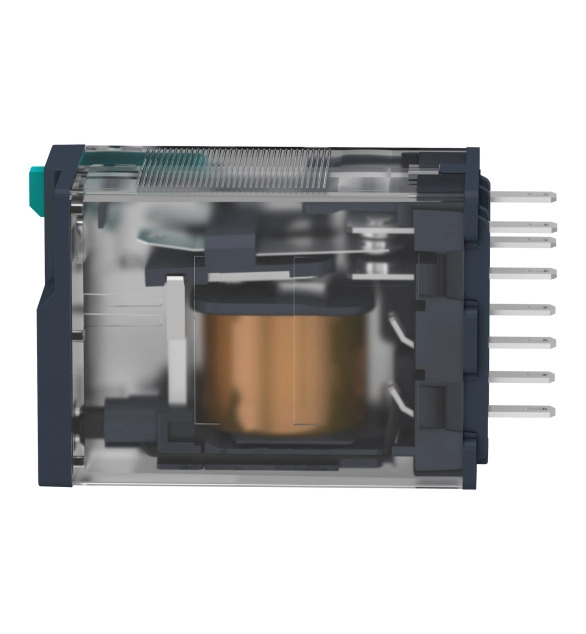

RXM miniature relays are part of Harmony Electromechanical Relays. This is a plug in relay to be mounted on a RXZE socket. It is a 4 C/O relay with current rating of 6A, control circuit voltage of 12 V DC. It also offers one-step loackable test button and mechanical indicator for contact status. The testbutton is activated momentarily by pushing the blue pushbutton on the front and locked by flipping up the green part. The mechanical indicator is next to the testbutton, where an orange flag indicates the relay contact status. Workablity for hard-wired logic automated systems to complement the functions of industrial progammable logic controllers (PLCs). Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. This product conforms to international standard and certifications like IEC, CE, UL, CSA, EAC, Lloyd's, RoHS and REACH. RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available. It is sold in lots of 10 and reference includes relay only. The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A), 4 CO (6A) contacts, 4 CO (3A) low level contacts.
