СКУ: A9K01325

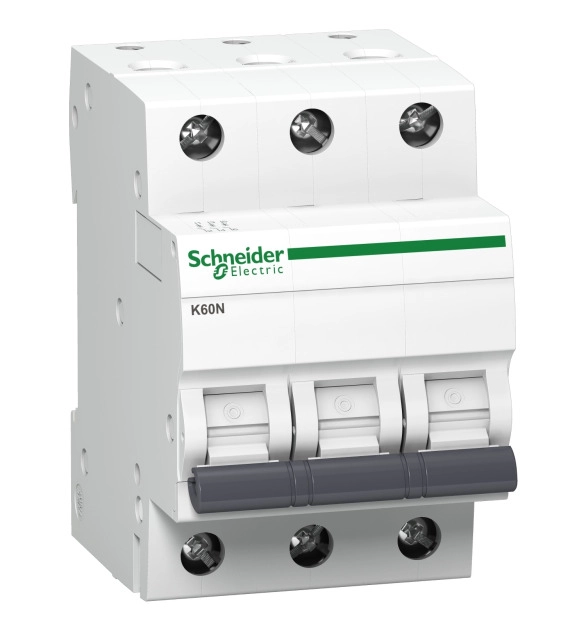

Миниатюрен автоматичен прекъсвач Acti9 K60N 3P - 25 A - B крива 6000 A
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Concurrently switching neutral conductor
FALSE
-
Frequency
50
-
Width in number of modular spacings
3
-
Rated voltage
400
-
Flush-mounted installation
FALSE
-
Explosion-proof
FALSE
-
Rated current
25
-
Number of poles (total)
3
-
Number of protected poles
3
-
Release characteristic
EV000074
-
Ambient temperature during operating
-25
-
Voltage type
EV000460
-
Pollution degree
2
-
Rated impulse withstand voltage Uimp
4
-
Additional equipment possible
FALSE
-
Current limiting class
3
-
Built-in depth
44.5
-
Rated insulation voltage Ui
440
-
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
6
-
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
6
-
Connectable conductor cross section solid-core
0.5
-
Connectable conductor cross section multi-wired
0.5
This Acti9 K60N product is a low voltage miniature circuit breaker (MCB). It is a 3P circuit breaker with 3 protected poles and 25A In rated current and B tripping curve. The Icn rated short circuit breaking capacity goes up to 6000A at 400VAC conforming to EN/IEC 60898-1 standard. It complies with residential standard EN/IEC 60898-1. This miniature circuit breaker combines functions of circuit protection against short circuit and overload current, control and isolation. The connection can be made downstream by biconnect comb busbar. It can be also made upstream/downstream by tunnel terminals. A padlock device is available for work to be carried out on live parts. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ui rated insulation voltage is 440VAC. The Uimp rated impulse withstand voltage is 4kV. The operating frequency is 50Hz or 60Hz. It can be mounted on DIN rail for modular installation. Its width is 6 pitches of 9mm. The product colour is white (RAL9003). The dimensions are (W) 54mm x (H) 81mm x (D) 70mm. The weight is 0.36kg. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -25°C to 70°C. The storage temperature is -40°C to 70°C.
