СКУ: M9F43304

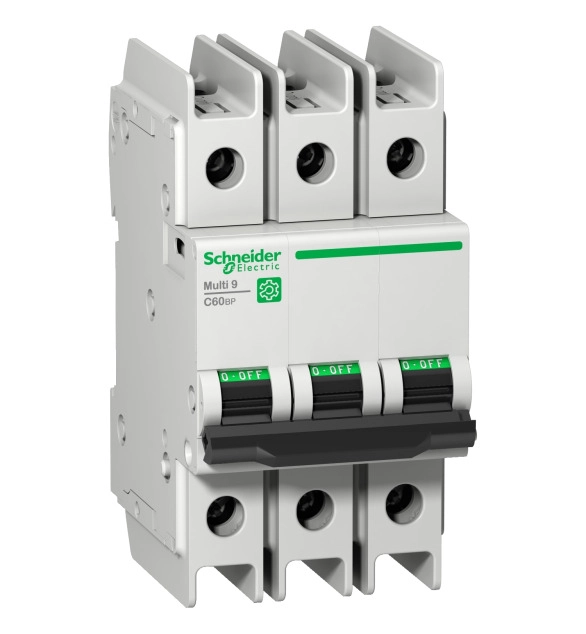

Миниатюрен авт. прекъсвач (MCB), Multi9 C60BP, 3P, 4A, D крива, 10kA (UL489), 10kA (IEC/EN 60947-2)
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Width in number of modular spacings
6
-
Frequency
50
-
Additional equipment possible
TRUE
-
Release characteristic
EV000084
-
Concurrently switching neutral conductor
TRUE
-
Flush-mounted installation
FALSE
-
Explosion-proof
FALSE
-
Over voltage category
4
-
Ambient temperature during operating
-30
-
Connectable conductor cross section multi-wired
1
-
Pollution degree
3
-
Number of poles (total)
3
-
Number of protected poles
3
-
Rated impulse withstand voltage Uimp
6
-
Voltage type
EV000460
-
Connectable conductor cross section solid-core
1
-
Rated insulation voltage Ui
500
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
20
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
10
-
Rated voltage
277
-
Built-in depth
48
-
Rated current
35
Ground-connection diagram study bench: The benches are mounted on a chassis with blocking wheels. Bench composition: 1 distribution architecture summary, 3 single or three-phase receivers representing an individual person, protection by magnetothermal and differential circuit breakers, differential switches and contactors, 1 permanent isolation controller for IT (IM20), resistors and power transformers in the lower part. Supplied accessory: 1 set of secure cords Fault Search Kit (offered as separate CR MDG99609) : To be ordered with the IM20 version ground connection schematics bench. Composition: XP15 ammeter clamp, 1 XGR leakage current generator, 1 mobile XRM receiver. Characteristics: Power supply: 400 V / 4 kVA; Dimension (H x W x D): 1950 x 770 x 600 mm; Weight: 152 kg
